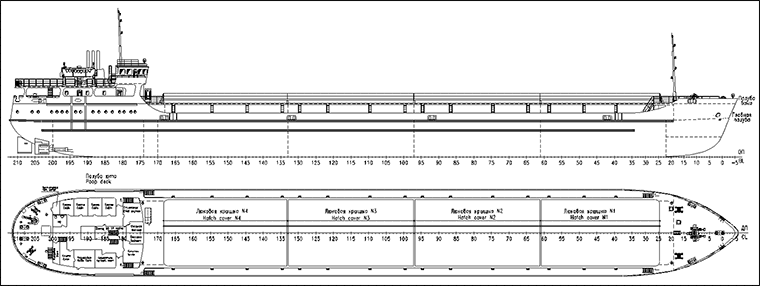

PROJECT 2-95 MODERNIZATION
4361 / 3053 DWT dry-cargo vessel "Mila" type
Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including grain and timber.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
114.00 |
| Length between PP, m |
110.00 |
| Breadth overall, m |
13.23 |
| Breadth, m |
13.00 |
| Depth, m |
5.50 |
| L x B x H |
114.00 x 13.23 x 5.50 = 8 295 |
| 2. |
Draught at SWL, m |
4.49 |
| 3. |
Draught in river, m |
3.60 |
| 4. |
Ballast draft, m |
2.46 |
| 5. |
Deadweight in sea at SWL draught, t |
4361 |
| 6. |
Deadweight in river at draught d = 3.60 m, t |
3053 |
| 7. |
Endurance, days |
15 |
| 8. |
Number of cargo holds |
4 |
| 9. |
Cargo holds dimension (l x b x h), m |
19.65 x 11.20-9.52 x 7.12
19.80 x 11.20-9.52 x 7.12
19.80 x 11.20-9.52 x 7.12
19.80 x 11.20-9.52 x 7.12 |
| 10. |
Cargo holds capacity, m³ |
5677 |
| 11. |
Ballast tanks capacity, m³ |
1983 |
| 12. |
Russian maritime Register of Shipping class |
KM  L4 IISP (L4 at d ≤ 3.856 m) |
| 13. |
ME powers, kW |
2 x 515 |
| 14. |
Diesel-generators, kW |
2 x 100 |
| 15. |
Crew / berth, pers. |
20 / 20 |
| 16. |
Speed, knots |
10 |
|
