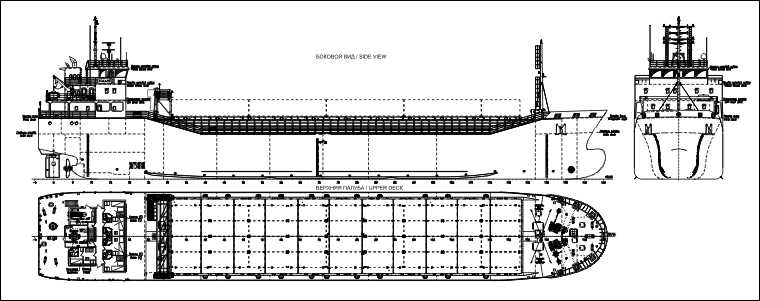

PROJECT DCV43
4500 DWT multipurpose dry-cargo vessel of non-restricted navigation area
Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including TEU and FEU up to 9 feet height, steel, grain, timber, coal, large-dimension and heavy-weight cargoes, hazardous cargoes of classes 1.4S, 2, 3, 4, 5, 6.1, 8, 9 and Appendix B of the BC Code.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
89.99 |
| Length between PP, m |
84.43 |
| Breadth, m |
14.00 |
| Depth, m |
7.15 |
| L x B x H |
89.99 x 14.00 x 7.15 = 9 008 |
| 2. |
Draught at SWL, m |
5.81 |
| 3. |
Deadweight in sea at SWL draught, t |
4500 |
| 4. |
Endurance, days |
30 |
| 5. |
Number of cargo holds |
1 |
| 6. |
Cargo hold capacity, m³ |
5530 |
| 7. |
Container capacity (hold / deck), TEU |
138 (102 / 36) |
| 8. |
Ballast tanks capacity, m³ |
1885 |
| 9. |
Stowage factor, m³/t |
1.36 |
| 10. |
GL class |
Hull:  100 A5 E2 SOLAS II-2, Reg.19, G, DBC,
Multi-Purpose Dry Cargo Ship, Equipped for Carriage of Containers
Machinery: MC E2 AUT |
| 11. |
ME power, kW |
1 x 2500 |
| 12. |
Rudder and propeller complex |
CPP + rudder |
| 13. |
Bow thruster, kW |
170 |
| 14. |
Auxiliary engines: |
| diesel-generators, kW |
2 x 180 |
| shaft generator, kW |
1 x 292 |
| emergency diesel-generator, kW |
1 x 90 |
| 15. |
Crew / berth, pers. |
9 / 11 |
| 16. |
Speed (at draft d = 5.81 m and 90% MCR), knots |
11.7 ±0.3 |
|
