PROJECT INF02

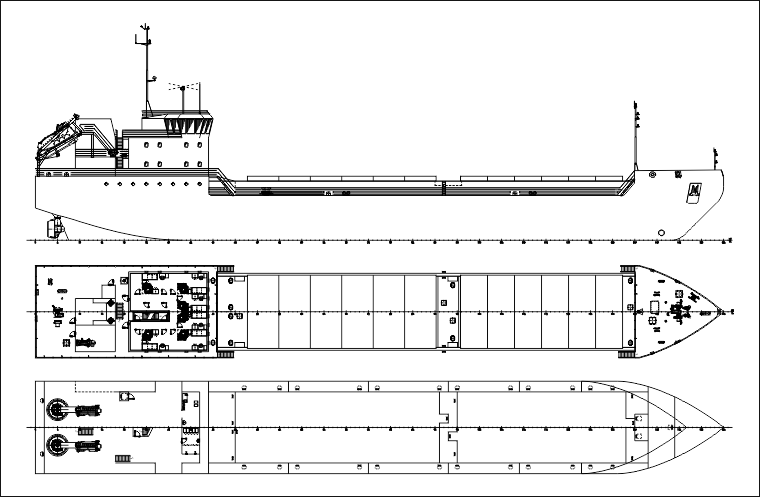

2996 / 2083 DWT multipurpose dry-cargo vessel of "Saimaa max" class (perspective dimensions)
Purpose - carrying of the general and bulk cargoes, timber, containers of international standard (TEU and FEU) and dangerous cargoes on inland waterways of the European part of the Russian Federation and Finland, as well as Lake Saimaa.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
93.00 |
| Breadth, m |
12.50 |
| Depth, m |
6.00 |
| L x B x H |
93.00 x 12.50 x 6.00 = 6 975 |
Air draft from BL to an upper edge
of non-removable parts (not greater than), m |
19.00 |
| 2. |
Draught in river, m |
3.20 / 3.60 |
| 3. |
Draught in Saimaa Canal, m |
4.45 |
| 4. |
Deadweight in river at draught
d = 3.20 / 3.60 m (about), t |
1667 / 2083 |
| 5. |
Deadweight in Saimaa Canal, t |
2996 |
| 6. |
Endurance by fuel stores, days |
15 |
| 7. |
Number of cargo holds |
2 |
| 8. |
Cargo holds capacity, m³ |
3400 |
| 9. |
Container capacity (holds / deck), TEU |
69 (48 / 21) |
| 10. |
Hatch covers |
lift-away type (opening/closing is
implemented with the aid of a special travelling gantry crane) |
| 11. |
Russian Maritime Register of Shipping class |
KM  Arc4 R2 |
| 12. |
ME power, kW |
2 x 746 |
| 13. |
Rudder and propeller complex |
2 x Rudderpropellers |
| 14. |
Bow thruster, kW |
120 |
| 15. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 160 |
| emergency diesel-generator, kW |
1 x 65 |
| 16. |
Crew / berth, pers. |
9 / 11 |
| 17. |
Speed at 85% MCR (not less than), knots |
10 |
|
