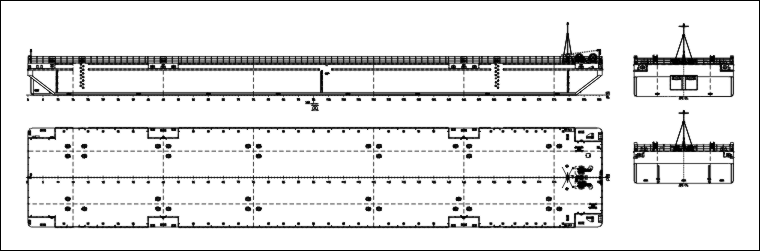

PROJECT RDB15
4272 / 3866 DWT non-self-propelled open-deck vessel for carriage of "design" cargoes
Purpose - carrying of the general cargoes, including large-dimension and heavy-weight cargoes.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
96.00 |
| Length between PP, m |
95.50 |
| Breadth overall, m |
16.73 |
| Breadth scantlings, m |
16.50 |
| Depth, m |
5.30 |
| L x B x H |
96.00 x 16.73 x 5.30 = 8 512 |
| 2. |
Draught (in sea by SWL / in river), m |
3.54 / 3.30 |
| 3. |
Ballast draft, m |
3.30 |
| 4. |
Deadweight (in sea by SWL draught / in river), t |
4272 / 3866 |
| 5. |
Area of cargo deck of bunker, m² |
1428 |
| 6. |
Ballast tanks capacity, m³ |
2106 |
| 7. |
Russian maritime Register of Shipping class |
K  RI |
|
