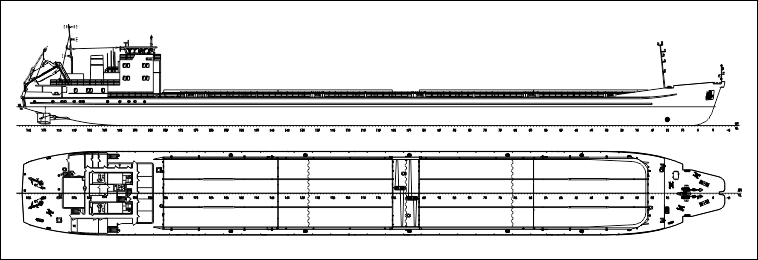

PROJECT RSD22
5450 DWT multipurpose dry-cargo vessel
(modernization of project 05074T tanker)
Purpose - carrying of the general and bulk cargoes including grain, timber, containers of internationall standard in holds.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
138.70 |
| Length scantlings by CWL, m |
136.15 |
| Length between PP, m |
135.0 |
| Breadth overall, m |
16.70 |
| Breadth, m |
16.50 |
| Depth, m |
5.50 |
Overall height up to an upper edge
of non-removable parts from BL, m |
16.0 |
| L x B x H |
138.70 x 16.70 x 5.50 = 12 740 |
| 2. |
Draught at SWL (γ = 1.025 т/м³), m |
3.70 |
| 3. |
Deadweight at SWL draught, t |
5450 |
| 4. |
Endurance, days |
15 |
| 5. |
Number of cargo holds |
4 |
| 6. |
Cargo holds capacity, m³ |
6706 |
| 7. |
Russian River Register class |
 M-PR 2,5 (ice 20) |
| 8. |
ME power, kW |
2 x 883 |
| 9. |
Rudder and propeller complex |
2 FPP +
2 rotated nozzles with stabilizers |
| 10. |
Bow thruster, kW |
95 |
| 11. |
Auxiliary engines: |
| diesel-generators, kW |
2 x 113.9 |
| harbour diesel-generator, kW |
1 x 58.8 |
| 12. |
Crew, pers. |
17 |
| 13. |
Speed, knots |
10.0 |
|
