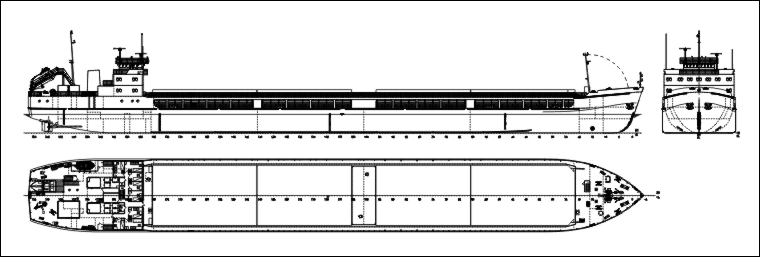

PROJECT RSD40
6025 / 4552 DWT multipurpose dry-cargo vessel of "Volgo-Don max" class
Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes including steel, timber, grain, and some dangerous goods.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
138.80 |
| Length between PP, m |
135.00 |
| Breadth overall, m |
16.70 |
| Breadth scantlings, m |
16.50 |
| Depth, m |
5.50 |
| L x B x H |
138.80 x 16.70 x 5.50 = 12 479 |
| 2. |
Draught (in sea / in river), m |
4.20 / 3.60 |
| 3. |
Deadweight (in sea / in river) (about), t |
6025 / 4552 |
| 4. |
Endurance (in sea / in river), days |
15 / 7 |
| 5. |
Range, nautical miles |
3600 |
| 6. |
Number of cargo holds |
4 |
| 7. |
Cargo holds capacity, m³ |
9858 |
| 8. |
Ballast tanks capacity, m³ |
3129 |
| 9. |
Russian River Register class |
 M-SP 3,5 |
| 10. |
ME power, kW |
2 x 883 |
| 11. |
Rudder and propeller complex |
2 FPP +
2 nozzles with stabilizers |
| 12. |
Bow thruster, kW |
90 |
| 13. |
Auxiliary engines: |
| diesel-generators |
2 x 100 kW +
1 x 50 kW |
| emergency diesel-generator, kW |
1 x 75 |
| 14. |
Crew / berth, pers. |
12 / 14 |
| 15. |
Speed, knots |
10.0 |
|
