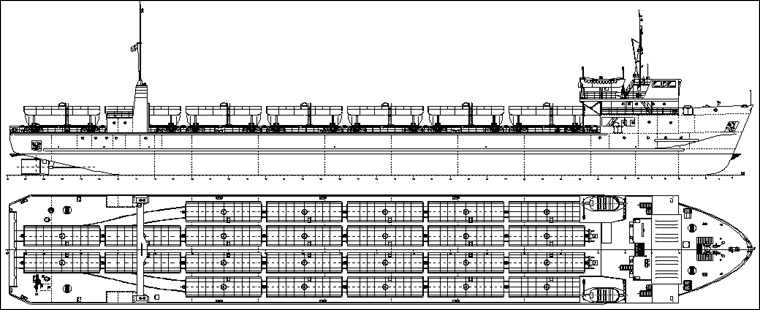

PROJECT 002CNF01
Railway ferry 24-25 cars capacity "Petrovsk" type
(lines: port Krym - port Kavkaz, port Mahachkala - ports Aktau, Turkmenbashi)
Purpose - carrying of the railway train, cars and general cargoes.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Petrovsk |
SY "Yuzhnyj Sevastopol" |
|
|
2002 |
| Annenkov |
SY "Yuzhnyj Sevastopol" |
|
|
2003 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
110.50 |
| Length, m |
105.20 |
| Breadth overall, m |
16.40 |
| Breadth scantlings, m |
16.00 |
| Depth to main deck, m |
4.00 |
| Depth to upper deck, m |
6.25 |
| L x B x H |
110.50 x 16.40 x 4.00 = 7 249 |
| Air draft from BL, m |
26.95 |
| Air draft from BL to an upper edge of non-removable parts, m |
15.40 |
| 2. |
Draught at SWL, m |
3.40 |
| 3. |
Ballast draft, m |
2.73 |
| 4. |
Deadweight, t |
3265 |
| 5. |
Endurance, days |
15 |
| 6. |
Number of cargo decks |
1 |
| 7. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length
between autoreplacers 12020 mm (four-axled), units |
24 - 25 |
| 8. |
Ballast tanks capacity, m³ |
3530 |
| 9. |
Russian maritime Register of Shipping class |
KM  L4  IISP (roll-on roll-off) |
| 10. |
ME power, kW |
2 x 650 |
| 11. |
Crew / passengers, pers. |
13 / 6 |
| 12. |
Speed, knots |
10.0 |
|
