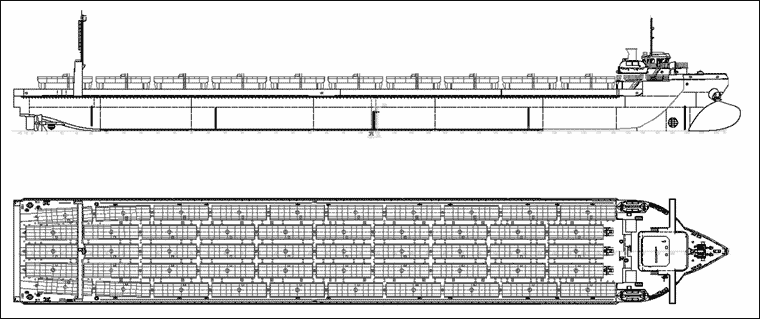

PROJECT CNF03.01
Railway ferry for 50 railway cars "SMAT" type
(lines: ports Kavkaz - port Samsun, port Kavkaz - port Poti)
Purpose - carrying of the railway trains, vehicles and containers.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Smat |
Kherson Shipbuilding Yard, 18007 |
01.10.05 |
27.09.06 |
30.03.07 |
| Feruz |
Kherson Shipbuilding Yard, 18008 |
14.10.05 |
03.05.07 |
29.11.08 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
150.32 |
| Length, m |
140.31 |
| Breadth overall, m |
22.00 |
| Breadth scantlings, m |
21.00 |
| Depth, m |
7.15 |
| L x B x H |
150.32 x 22.00 x 7.15 = 23 645 |
Air draft from BL to an upper edge
of non-removable parts, m |
24.80 |
| 2. |
Draught at SWL, m |
3.80 |
| 3. |
Ballast draft, m |
2.58 |
| 4. |
Deadweight, t |
6628 |
| 5. |
Endurance, days |
15 |
| 6. |
Number of cargo decks |
1 |
| 7. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), weight 88 t, units |
50 |
| 8. |
Russian maritime Register of Shipping class |
KM  Ice1 R2 ro-ro ship |
| 9. |
MDG power, kW |
3 x 900 |
| 10. |
Thrusters: |
| bow, kW |
478 |
| stern, kW |
442 |
| 11. |
Crew, pers. |
16 |
| 12. |
Speed (about), knots |
10.0 |
|
