PROJECT CNF05

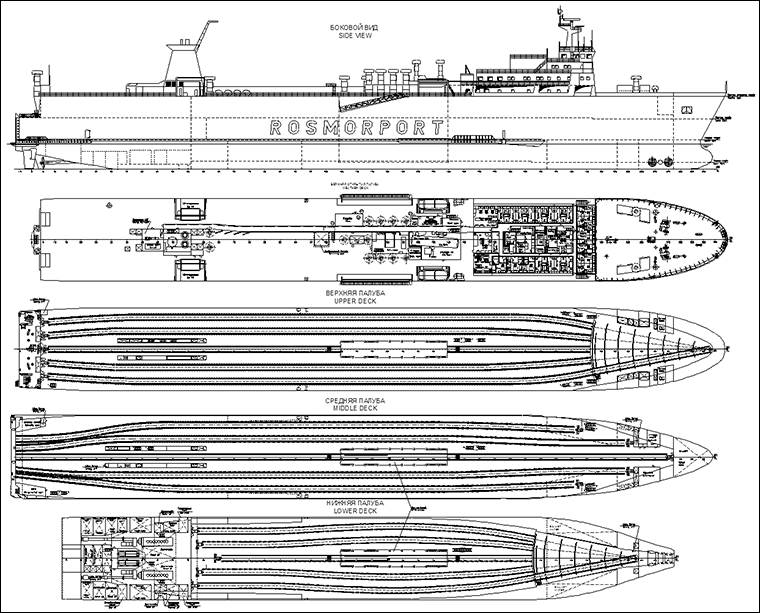

Railway ferry for 135 railway cars "Baltiysk" type
(line port Ust-Luga - port Baltiysk - port Sassnitz)
Purpose - carrying of the railway trains of the Russian standard with breadth of a track 1520 mm and vehicles by roll-on/roll-off method, 20 and 40 foot roll - trailers, including IMO cargoes, up to 30 refrigerator containers.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Baitiysk |
Bremerhaven, 1043 |
|
06.1984 |
11.1984 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
187.36 |
| Length on LLC-66, m |
176.78 |
| Length between PP, m |
174.40 |
| Breadth overall, m |
22.00 |
| Breadth scantlings, m |
21.60 |
| Breadth wings, m |
23.70 |
| Depth, m |
18.95 |
| L x B x H |
187.36 x 22.00 x 18.95 = 78 110 |
| 2. |
Draught at SWL, m |
6.50 |
| 3. |
Deadweight at SWL draught, t |
9879 |
| 4. |
Number of cargo decks |
3 |
| 5. |
Length of rails: |
1943.3 |
| lower train deck, m |
452.7 |
| middle train deck, m |
778.3 |
| upper train deck, m |
712.3 |
| 6. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), units |
135 |
freight cars of T-1 gauge with length between
autoreplacers 16970 mm (four-axled), units |
92 |
freight cars of T-1 gauge with length between
autoreplacers 24620 mm (four-axled), units |
48 +
24 with length between autoreplacers 16970 mm |
| 7. |
Loading capacity for vehicles: |
private cars
on the upper open deck, units |
76 |
| 8. |
Passenger capacity, pers. |
12 |
| 9. |
Ballast tanks capacity, m³ |
3 517 |
| 10. |
Russian maritime Register of Shipping class |
KM  UL AUT1 ro-ro ship |
| 11. |
ME power, kW |
2 x 8000 |
| 12. |
Crew / berth, pers. |
16 / 20 |
| 13. |
Service speed, knots |
18.5 ±0.3 |
| 14. |
GT |
20126 |
| 15. |
NT |
6241 |
|
