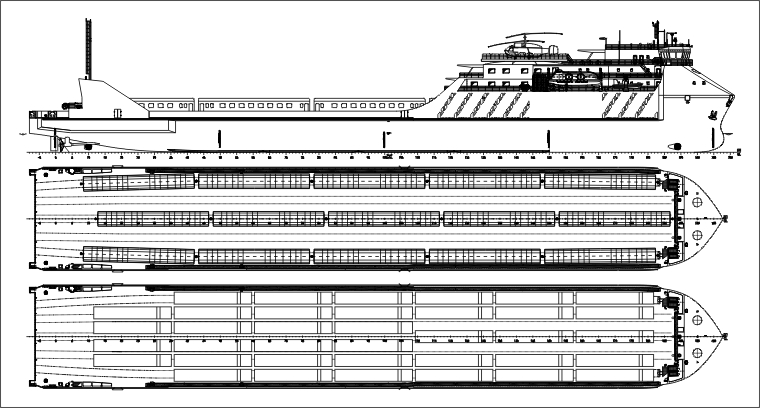

PROJECT CNF08A

Car - railway train - passenger ferry (line port Krym - port Kavkaz and other Black sea lines)




Purpose - transportation of passenger carriage with passengers, also railways vehicles (T-1 gauge) Russian standard with gauge of railway 1520 mm and European standard with gauge of railway 1435 mm, all kinds of automobiles, including road trains with 12 (13.5) m tiers and containers platforms, various wheel techniques and containers on rolltrailers, with the stern cargo handling operations.Transportation not less than 37 road trains (55 t) on the upper deck or 214 wheel techniques (1.5 t) on the upper deck.There are places for accommodation and transportations 840 persons of passengers.Transportation of passengers to provide equipped seating places on the superstructure (in saloon and open deck).




# Name Value
1. Main dimension
Length overall, m 149.99
Length by DWL, m 145.76
Breadth overall (with fenders), m 22.00
Breadth, m 21.00
Depth, m 7.15
L x B x H 149.99 x 22.00 x 7.15 = 23 593
2. Draught at SWL, m 4.00
3. Deadweight (about), t 6277
4. Endurance:
by fuel stores, days 10
by fresh water stores, days 3
by provision stores, days 5
by sewage collection tanks
(in areas when any discharge are prohibited), days
1.5
5. Number of cargo decks 1
6. Length of rails (main deck), m 673
7. Loading capacity for railway cars:
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), units
55
freight cars of T-1 gauge with length between
autoreplacers 14730 mm (four-axled), units
43
gondola wagon of T-1 gauge with length between
autoreplacers 13920 mm (four-axled), units
45
passenger cars of T-1 gauge with length between
autoreplacers 24540 mm (four-axled)
with passengers, units
15
passenger cars of T-1 gauge with length between
autoreplacers 24540 mm (four-axled)
without passengers, units
25
8. Lane meters
(main deck / without railway cars)
673 / 1298
9. Ship's capacity for vehicles:
trucks with a semitrailers (road train) length
12-13.5 m, without railway cars on main deck, units
37
private cars (only), units 214
10. Passenger capacity, pers. 840
11. Passengers rooms: internet cafe;
buffet;
smoking room;
shop-bar
public toilets with lavatory
12. Sports and fitness complex: gym;
sauna with pool
13. Russian maritime Register of Shipping class KM Ice2 R2 AUT1-ICS HELIDECK Ro-ro passenger ship
14. ME power, kW 2 x 2040
15. Rudder and propeller complex 2 x FPP +
2 spade rudders
16. Thrusters:
bow, kW 350
stern, kW 350
17. Auxiliary engines:
diesel-generators, kW 4 x 300
emergency diesel-generator, kW 1 x 300
18. Motorboats:
lifeboats, pers. 2 x 150
speed rescue, pers. 1 x 15
rescue, pers. 1 x 6
19. Evacuation system with inflatable rafts 6 x 101 pers.
20. Inflatable life raft throw over
(bow + aft)
2 x 100 pers. +
2 x 6 pers.
21. Crew and service personal, pers. 30
22. Full speed, knots 12.1
