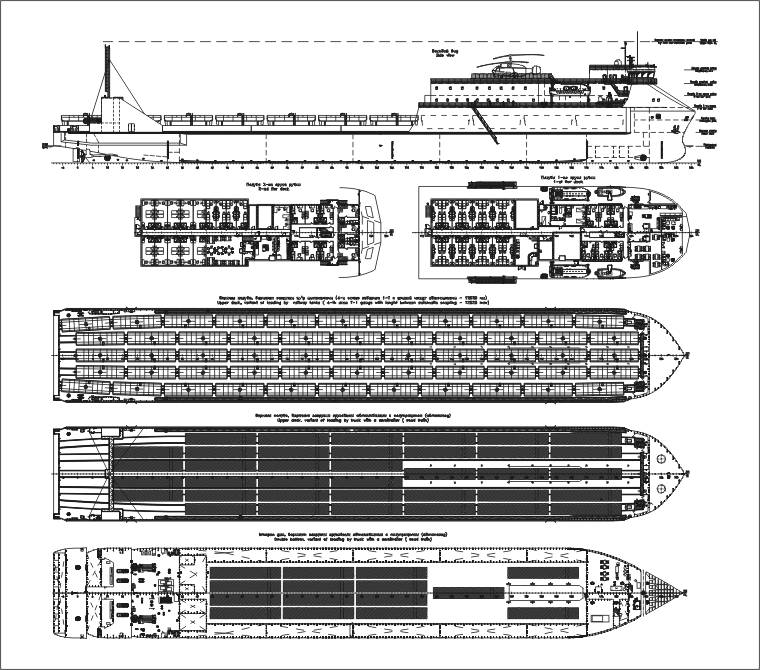

PROJECT CNF08P
Car - railway train / passenger ferry
for operation from railway terminals port Kavkaz in the directions:
Russian Federation ports on Black Sea - ports of Turkey - ports of Bulgaria
Purpose - transportation of trains of the Russian standard with breadth of a track 1520 mm and European standard with breadth of a track 1435 mm, all kinds of automobiles, including road trains, various wheel techniques and containers on rolltrailers with the stern cargo handling operations, passengers and hazardous cargoes.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
149.99 |
| Length on SWL, m |
147.53 |
| Breadth overall (with fenders), m |
22.00 |
| Breadth, m |
21.00 |
| Depth, m |
7.15 |
| L x B x H |
149,99 x 22,20 x 7,15 = 23 808 |
| 2. |
Draught at SWL, m |
4.00 |
| 3. |
Deadweight (about), t |
6240 |
| 4. |
Endurance: |
| by fuel stores, days |
15 |
| by fresh water, provision stores, days |
10 |
by sewage collection tanks
(in areas when any discharge are prohibited), days |
3 |
| 5. |
Number of cargo decks |
2 |
| 6. |
Length of rails (main deck), m |
673 |
| 7. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), units |
55 |
freight cars of T-1 gauge with length between
autoreplacers 14730 mm (four-axled), units |
43 |
gondola wagon of T-1 gauge with length between
autoreplacers 13920 mm (four-axled), units |
45 |
| 8. |
Lane meters (main deck / without railway cars) |
673 / 1298 |
| 9. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train)
length 12-13.5 m, without railway cars
on main deck, units |
52 |
trucks with a semitrailers (road train)
length 12-13.5 m, with railway cars
on main deck, units |
15 |
| private cars (only) |
312 |
| 10. |
Cargo lift |
1 x 55 t |
| 11. |
Passenger capacity, pers. |
100 |
| 12. |
Passenger cabins: |
| double with lavatory and douche |
20 |
| four-berth with lavatory and douche |
80 |
| 13. |
Restaurant, places |
50 |
| 14. |
Passenger recreation rooms: |
dayrooms as a part of passengers halls;
internet cafe (with playing machine);
smoking room |
| 15. |
Additional rooms for passenger service: |
luggage store;
duty free shop |
| 16. |
Sports and fitness complex: |
sauna |
| 17. |
Russian maritime Register of Shipping class |
KM  Ice1 R1 AUT1-C HELIDECK
Ro-ro passenger ship |
| 18. |
ME power, kW |
2 x 2040 |
| 19. |
Rudder and propeller complex |
2 x FPP +
2 spade rudders |
| 20. |
Bow thruster, kW |
1 x 350 |
| 21. |
Auxiliary engines: |
| diesel-generators, kW |
4 x 300 |
| emergency diesel-generator, kW |
1 x 168 |
| 22. |
Motorboats: |
| lifeboats, pers. |
2 x 22 |
| speed rescue, pers. |
1 x 15 |
| rescue, pers. |
1 x 6 |
| 23. |
Evacuation system with inflatable rafts |
2 x 101 pers. |
| 24. |
Inflatable life raft throw over (aft) |
2 x 6 pers. |
| 25. |
Crew and service personal, pers. |
30 |
| 26. |
Full speed, knots |
12.6 |
|
