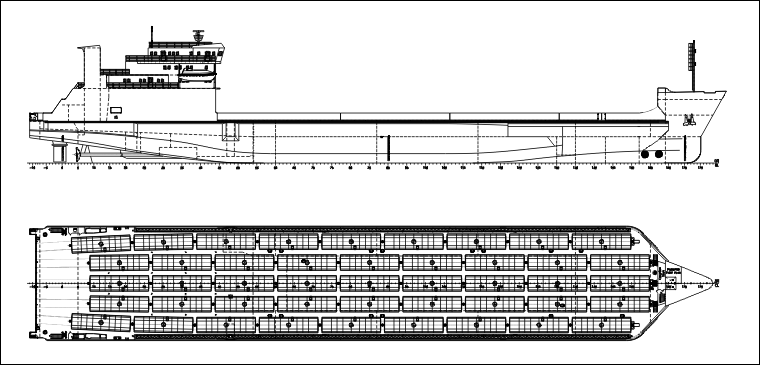

PROJECT CNF10
Railway ferry for 45 railway cars for Black Sea "Ulfat" type
Purpose - carrying of the railway cars and rolling equipment, as well as dangerous goods 1, 2.1, 2.2, 2.3, 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 8, 9 class and oversize cargo.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| ULFAT |
Sefine |
|
|
29.05.12 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
133.82 |
| Length, m |
122.70 |
| Breadth overall, m |
22.00 |
| Breadth scantlings, m |
21.00 |
| Depth, m |
8.00 |
| L x B x H |
133.82 x 22.00 x 8.00 = 23 553 |
| 2. |
Draught at SWL, m |
5.00 |
| 3. |
Ballast draft, m |
2.49 |
| 4. |
Deadweight, t |
5238 |
| 5. |
Endurance, days |
10 |
| 6. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), units |
45 |
| 7. |
Passenger capacity, pers. |
12 |
| 8. |
Russian maritime Register of Shipping class |
KM  L4 R2-RSN Ro-ro ship |
| 9. |
ME power, kW |
2 x 3310 |
| 10. |
Bow thrusters |
1 x 367 kW +
1 x 588 kW |
| 11. |
Crew / berth, pers. |
15 / 16 |
| 12. |
Speed (about), knots |
12.0 |
|
