PROJECT CNF11CPD

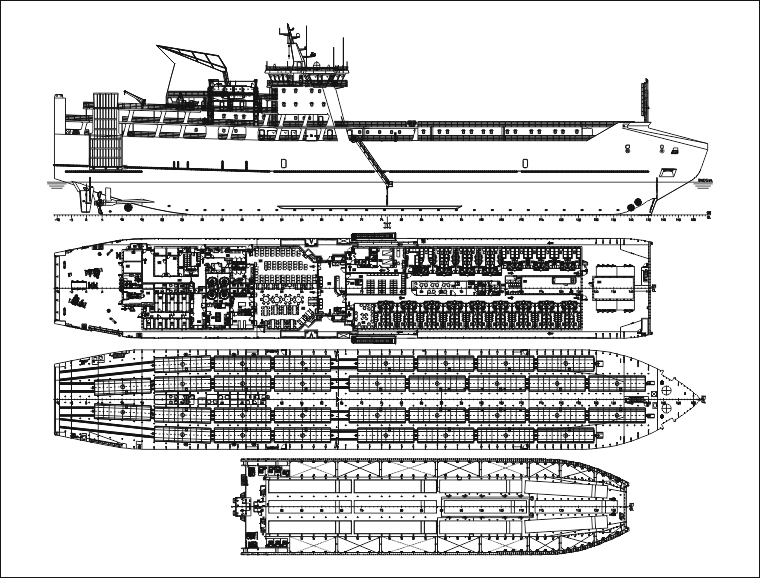

Car - railway train / passenger ferry with possibility of carrying dangerous goods with ice category Arc5 (line port Vanino - port Kholmsk)
Purpose - transportation of trains of the Russian standard with breadth of a track 1520 mm, all kinds of automobiles, including road trains, various wheel techniques and containers on rolltrailers, refrigerator containers, also hazardous cargoes of classes 1.1-1.6, 1.4S, 2.1-2.3, 3 (all types), 4.1-4.3, 5.1, 6.1 (all types), 8 (all types), 9, passengers (Transportation of passengers simultaneously with transportation of dangerous cargoes is not provided.), with the stern and side cargo handling for vehicle transport.
|
Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
Aleksndr Deev |
Amurskij shipbuilding yard, 00300 |
29.06.17 |
01.08.19 |
31.05.23 |
Vasily Oshchepkov |
Amurskij shipbuilding yard, 00301 |
29.06.17 |
30.10.20 |
|
# |
Name |
Value |
1. |
Main dimension |
Length overall, m |
131.00 |
Length on DWL, m |
125.02 |
Breadth overall (with fenders), m |
20.32 |
Breadth, m |
19.92 |
Depth to main deck, m |
8.80 |
Depth to upper deck, m |
14.80 |
L x B x H |
131.0 x 20.32 x 14.80 = 39 397 |
2. |
Draught at DWL (design), m |
6.60 |
3. |
Deadweight (about), t |
4829 |
4. |
Endurance: |
by fuel and lubricating oil stores (economical speed), days |
5.2 |
by fresh water and provision stores, days |
10 |
by sewage collection tanks (in areas when any discharge are prohibited), days |
4 |
5. |
Range at economic speed, nautical miles |
1500 |
6. |
Number of cargo decks |
2 |
7. |
Length of rails (main deck), m |
440 |
8. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units |
32 |
freight cars of T-1 gauge with length between autoreplacers 14730 mm (four-axled), units |
26 |
gondola wagon of T-1 gauge with length between autoreplacers 13920 mm (four-axled), units |
26 |
9. |
Lane meters |
740 |
10. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train) length 12-13.5 m, without railway cars on main deck, units |
39 |
trucks with a semitrailers (road train) length 12-13.5 m with railway cars on main deck, units |
12 |
private car (in addition), units |
28 |
11. |
Cargo lift |
1 x 55 t |
12. |
Stern door B x H, m |
13.0 x 6.45 |
13. |
Side ramp (StB) L x B, m |
14.6 x 4.4 |
14. |
Passenger capacity, pers. |
200 |
15. |
Passenger cabins: |
double cabins with lavatory and douche |
8 |
four-berth cabins with lavatory and douche |
24 |
16. |
Passenger seats in saloon |
88 |
17. |
Passenger's dining room, places |
102 |
18. |
Passenger recreation rooms: |
dayroom as a part of passenger's hall; internet cafe |
19. |
Additional rooms for passenger service: |
luggage store; block of showers and WC; WC for disables persons |
20. |
Sports and fitness complex: |
gym; sauna with pool |
21. |
Passenger lift |
1 x 3 pers. |
22. |
Russian Maritime Register of Shipping class |
KM Arc5 AUT1-ICS OMBO ANTI-ICE ECO Ro-ro passenger ship |
23. |
ME power, kW |
4 x 4000 |
24. |
Rudder and propeller complex |
2 x CPP + 2 semibalanced rudders |
25. |
Thrusters: |
bow, kW |
2 x 500 |
stern, kW |
1 x 500 |
26. |
Auxiliary engines: |
diesel-generators, kW |
2 x 1140 |
emergency diesel-generator, kW |
1 x 400 |
27. |
Motorboats: |
lifeboats, pers. |
2 x 150 |
speed rescue (StB), pers. |
1 x 15 |
rescue (PS), pers. |
1 x 6 |
28. |
Evacuation system with inflatable rafts |
2 x 101 pers. |
29. |
Inflatable life rafts throw over |
2 x 101 pers. |
30. |
Crew and service personal, pers. |
35 |
31. |
Full speed, knots |
18.0 |
32. |
Economical speed, knots |
12.0 |
33. |
Ice going capability at the draught of d = 6.0 m |
speed not less than 3.0 knots in level ice thickness 1.0 m and 6-8 knots in level ice with thickness up to 80 cm |
|
