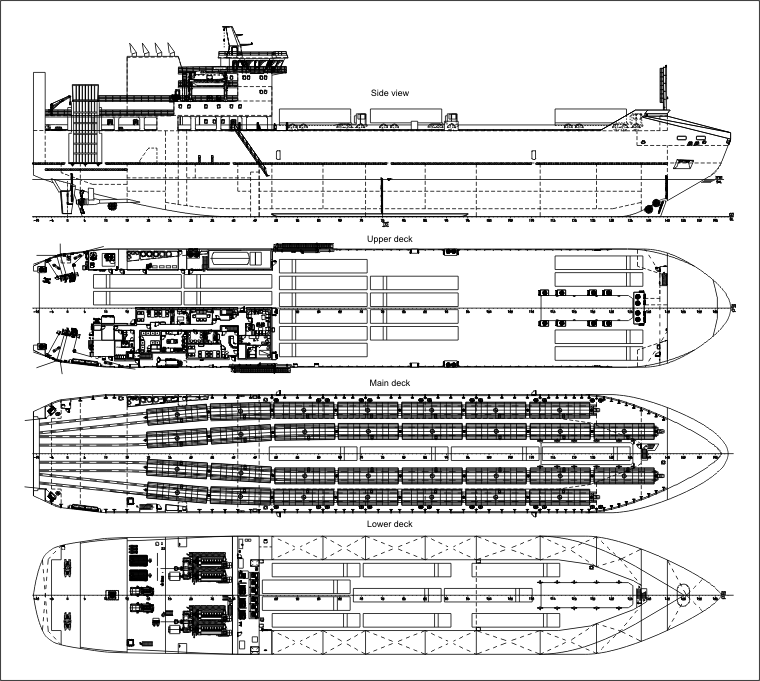

Car - railway train ferry with ice category Arc5 (line port Vanino - port Kholmsk)
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
131.00 |
| Length on DWL, m |
124.02 |
| Breadth overall (with fenders), m |
22.60 |
| Breadth, m |
22.20 |
| Depth to main deck, m |
10.10 |
| Depth to upper deck, m |
16.15 |
| L x B x H |
131.0 x 22.2 x 16.15 = 46 967 |
| 2. |
Draught at DWL (design), m |
7.00 |
| 3. |
Deadweight (about), t |
7250 |
| 4. |
Endurance: |
| by fuel (economic speed), provision stores, days |
5.2 |
| by fresh water stores, days |
10 |
by sewage collection tanks
(in areas when any discharge are prohibited), days |
19 |
| 5. |
Range at economic speed, nautical miles |
1500 |
| 6. |
Number of cargo decks |
3 |
| 7. |
Length of rails (main deck), m |
440 |
| 8. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length
between autoreplacers 12020 mm (four-axled), units |
30 |
freight cars of T-1 gauge with length
between autoreplacers 14730 mm (four-axled), units |
24 |
gondola wagon of T-1 gauge with length
between autoreplacers 13920 mm (four-axled), units |
26 |
| 9. |
Lane meters |
1036 |
| 10. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train) length
12-13.5 m, without railway cars
on main deck, units |
56 |
trucks with a semitrailers (road train) length
12-13.5 m with railway cars
on main deck, units |
15 |
| private cars (in addition), units |
28 |
| 11. |
Cargo lift |
1 x 55 t |
| 12. |
Stern door B x H, m |
13.3 x 5.35 |
| 13. |
Side ramp (StB) L x B, m |
14.7 x 4.4 |
| 14. |
Passenger capacity, pers. |
12 |
| 15. |
Passenger cabins: |
| superior single cabins with lavatory and douche |
4 |
| double cabins with lavatory and douche |
8 |
| 16. |
Restaurant, places |
12 |
| 17. |
Passenger recreation rooms |
dayroom and internet cafe
as a part of passenger's hall |
| 18. |
Additional rooms for passenger service |
luggage store |
| 19. |
Fitness center: |
gym;
sauna with pool |
| 20. |
Passenger lift |
1 x 4 pers. |
| 21. |
Russian Maritime Register of Shipping class |
KM  Arc5 AUT1-C Ro-ro ship |
| 22. |
ME power, kW |
4 x 4640 |
| 23. |
Rudder and propeller complex |
2 x CPP + 2 semibalanced rudders |
| 24. |
Thrusters: |
| bow, kW |
2 x 500 |
| stern, kW |
1 x 500 |
| 25. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 760 |
| emergency diesel-generator, kW |
1 x 100 |
| 26. |
Lifeboats |
2 x 42 pers. (1 as rescue boat) |
| 27. |
Inflatable life rafts throw over |
2 x 35 pers. |
| 28. |
Crew and service personal, pers. |
23 |
| 29. |
Full speed, knots |
18.0 |
| 30. |
Economical speed, knots |
12.0 |
| 31. |
Ice going capability at the draught d = 7.0 m |
speed not less than 3.0 knots
in level ice thickness 1.0 m
and 6-8 knots in level ice with thickness up to 80 cm |
