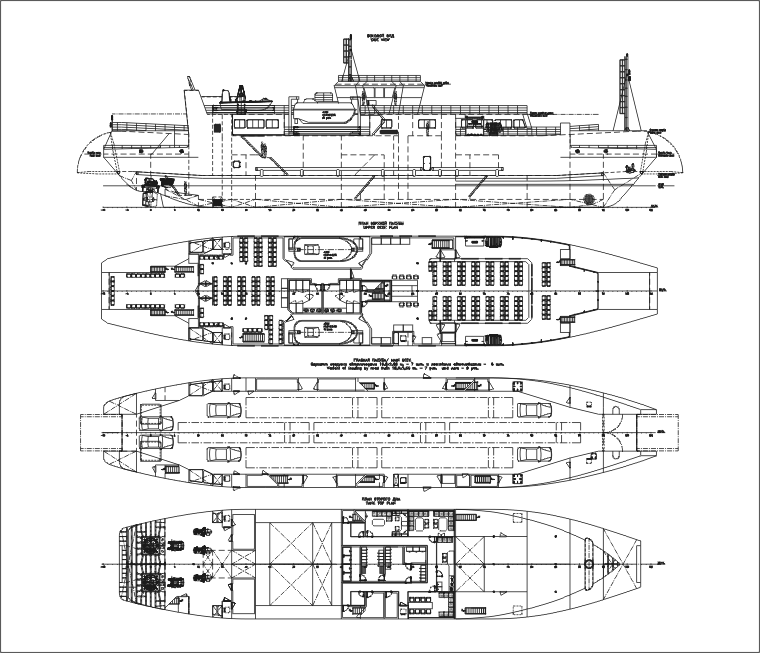

PROJECT CNF12M
Car - passenger ferry (line port Kavkaz - port Krym)
Purpose - transportation of all kinds of automobiles, including road trains, various wheel techniques and containers on rolltrailers with the stern and bow cargo handling operations, passengers.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
69.61 |
| Length on SWL, m |
63.31 |
| Breadth overall (with fenders), m |
14.00 |
| Breadth, m |
13.80 |
| Depth, m |
4.00 |
| L x B x H |
69.61 x 13.8 x 4.0 = 3 898 |
| 2. |
Draught at SWL, m |
2.70 |
| 3. |
Deadweight at SWL draught, t |
930 |
| 4. |
Endurance: |
| by fuel stores, days |
15 |
| by provision and fresh water stores, days |
5 |
by sewage collection tanks
(in areas when any discharge are prohibited), days |
3 |
| 5. |
Number of cargo decks |
1 |
| 6. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train)
length 12-13.5 m, units |
7 |
| private cars (only), units |
40 |
| 7. |
Number of cargo ramps |
2 |
| 8. |
Dimension of cargo ramps L x B, m |
5 x 4 |
| 9. |
Passenger capacity, pers. |
300 |
| 10. |
Passenger seats in saloon |
120 + 134 |
| 11. |
Passenger recreation rooms |
bar as a part of passengers halls |
| 12. |
Russian maritime Register of Shipping class |
KM  Ice 2 R2 Ro-ro passenger ship |
| 13. |
ME power, kW |
2 x 588 |
| 14. |
Rudder and propeller complex |
2 x Rudderpropellers |
| 15. |
Bow thruster, kW |
1 x 200 |
| 16. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 184 |
| emergency diesel-generator, kW |
1 x 168 |
| 17. |
Lifeboats: |
2 x 52 pers. + 1 rescue |
| 18. |
Evacuation system with inflatable rafts |
2 x (101 + 51) pers. |
| 19. |
Crew and service personal, pers. |
12 |
| 20. |
Full speed (about), knots |
11.2 |
|
