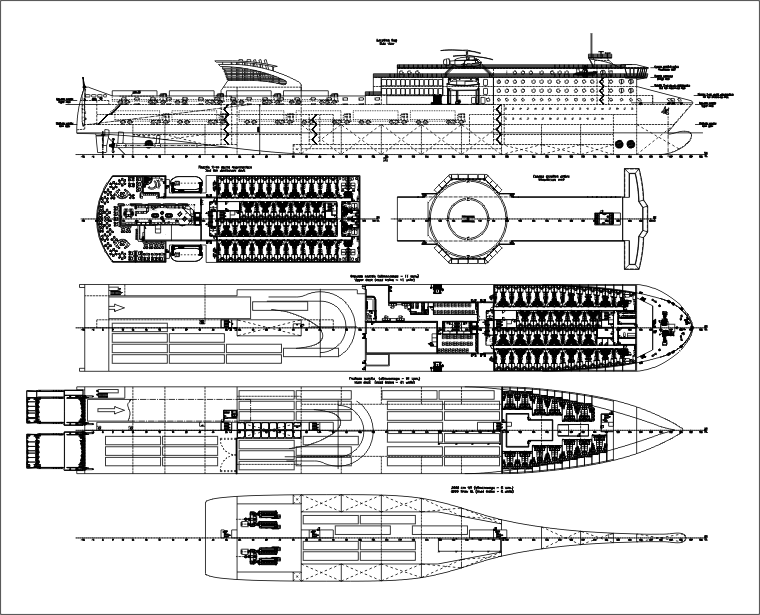

PROJECT CNF16A
Car - passenger ferry
(direction: port Sochi - ports of Turkey, and also for Crimea-Caucasus line)
Purpose - transportation of passengers, all kinds of automobiles, including road trains, various wheel techniques and containers on rolltrailers with the stern cargo handling operations, and hazardous cargoes.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
184.50 |
| Length by SWL, m |
177.10 |
| Breadth overall (with fenders), m |
26.40 |
| Breadth, m |
26.00 |
| Depth to main deck, m |
9.00 |
| Depth to upper deck, m |
15.00 |
| L x B x H |
184.5 x 26.40 x 15.0 = 73 062 |
| 2. |
Draught at SWL, m |
6.50 |
| 3. |
Deadweight (about), t |
5560 |
| 4. |
Range, nautical miles |
2000 |
| 5. |
Number of cargo decks |
3 |
| 6. |
Lane meters (including folding deck) |
1555 (2243) |
| 7. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train)
length 12-13.5 m, units |
50 |
| private cars (only), units |
470 |
| 8. |
Cargo lift |
1 x 55 t |
| 9. |
Stern cargo ramps L x B, m |
17.4 x 7.2 +
17.4 x 9.7 |
| 10. |
Stern passenger ramp (PS) L x B, m |
17.4 x 1.4 |
| 11. |
Passenger capacity: |
| general passenger capacity, pers. |
700 |
| superior single cabins with lavatory and douche, pers. |
10 |
| double cabins with lavatory and douche, pers. |
48 |
double (converted in four-berth)
cabins with lavatory and douche, pers. |
560 |
| seats in saloon, pers. |
100 |
| 12. |
Restaurant, places |
350 |
| 13. |
Passenger recreation rooms: |
dayroom with bar with playing machine;
dayrooms as a part of passengers halls;
internet cafe;
smoking room |
| 14. |
Additional rooms for passenger service: |
luggage store;
duty free shop;
block of showers and WC;
WC for people with disabilities |
| 15. |
Sports and fitness complex: |
gym;
sauna with pool |
| 16. |
Passenger lifts, units |
4 |
| 17. |
Russian maritime Register of Shipping class |
KM  AUT1-ICS OMBO Ro-ro passenger ship |
| 18. |
ME power, kW |
4 x 6000 |
| 19. |
Rudder and propeller complex |
2 x CPP +
2 semibalanced rudders |
| 20. |
Thrusters: |
| bow, kW |
2 x 1200 |
| stern, kW |
1 x 1200 |
| 21. |
Auxiliary engines: |
| diesel-generators, kW |
2 x 1500 |
| shaft generators, kW |
2 x 4000 |
| emergency diesel-generator, kW |
1 x 400 |
| 22. |
Motorboats: |
| lifeboats, pers. |
2 x 150 |
| speed rescue (StB), pers. |
1 x 15 |
| rescue (PS), pers. |
1 x 6 |
| 23. |
Evacuation system with inflatable rafts |
6 x 101 pers. |
| 24. |
Inflatable life raft throw over (aft) |
1 x 6 pers. |
| 25. |
Crew and service personal, pers. |
108 |
| 26. |
Full speed (about), knots |
24 |
| 27. |
Service speed, knots |
21 |
|
