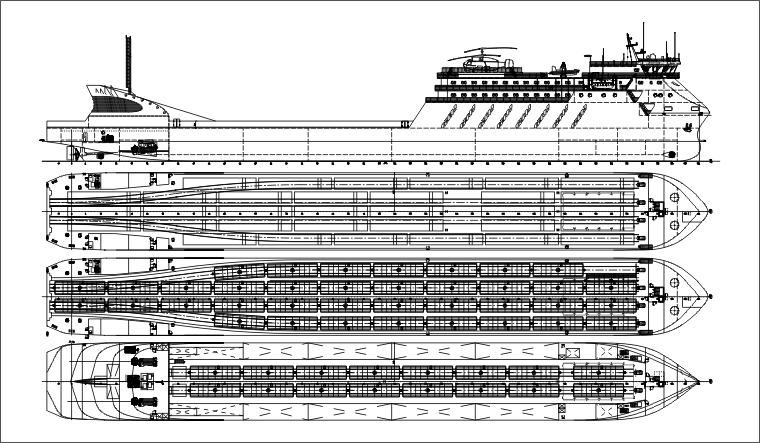

PROJECT CNF18A
Railway train - car - passenger ferry for Caspian Sea (directions: ports Makhachkala, Olya, Aktau, Turkmenbashi, ports of Iran)
Purpose - transportation of railways trains (T-1 gauge) Russian standard with gauge of railway 1520 mm, including dangerous cargoes, cargo vehicles, passengers in number of 2 persons for each road train, with the stern cargo handling operations. The vessel intended for transportation of dangerous goods on the open upper deck according to International Maritime Dangerous Goods Code (IMDG Code) and Rules of sea transportation of dangerous cargo.
|
# |
Name |
Value |
1. |
Main dimension |
Length overall, m |
150.0 |
Length on SWL, m |
147.60 |
Breadth overall (with fenders), m |
17.70 |
Breadth, m |
17.50 |
Depth, m |
7.50 |
L x B x H |
150.00 x 17.70 x 7.50 = 19 913 |
2. |
Draught at SWL, m |
4.50 |
3. |
Deadweight at SWL draught (about), t |
5560 |
4. |
Range, nautical miles |
2500 |
5. |
Endurace: |
by fuel stores, days |
10 |
by fresh water and provision stores, days |
5 |
by sewage tanks (in areas where any discharge are prohibited), days |
3 |
6. |
Number of cargo decks |
2 |
7. |
Length of rails (upper deck / double bottom), m |
460 / 200 |
8. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units |
54 |
9. |
Lane meters |
904 |
10. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train) length 12-13.5 m, units |
50 |
11. |
Cargo lift |
1 x 188 t |
12. |
Passenger capacity: |
general passenger capacity, pers. |
100 |
superior double cabins with lavatory and douche, pers. |
4 |
double (converted in four-berth) cabins with lavatory and douche, pers. |
96 |
13. |
Restaurant, places |
50 |
14. |
Passenger recreation rooms: |
internet cafe; bar with playing machine; dayrooms as a part of passengers halls; smoking room |
15. |
Additional rooms for passenger service: |
duty free shop; block of showers and WC |
16. |
Sports and fitness complex: |
gym; sauna with pool |
17. |
Medical block: |
doctor's consulting room; hospital (1 berth); isolation ward (1 berth) |
18. |
Passenger lift |
1 x 3 pers. |
19. |
Russian maritime Register of Shipping class |
KM Ice2 R1 AUT1-ICSOMBO ECO HELIDECK Ro-ro passenger ship |
20. |
ME power, kW |
4 x 2600 |
21. |
Rudder and propeller complex |
2 x FPP + 2 suspended rudders |
22. |
Trusters: |
bow, kW |
1 x 350 |
stern, kW |
1 x 350 |
23. |
Auxiliary engines: |
diesel-generators, kW |
4 x 300 |
emergency diesel-generator, kW |
1 x 300 |
24. |
Motorboats: |
lifeboats, pers. |
2 x 22 |
speed rescue, pers. |
1 x 15 |
rescue, pers. |
1 x 6 |
25. |
Evacuation system with inflatable rafts |
2 x 51 pers. |
26. |
Crew and service personal, pers. |
30 |
27. |
Ship speed in deep still water for the clean and recently painted hull at 4.0 m draught and 85% power of ME, knots |
14.0 |
|
