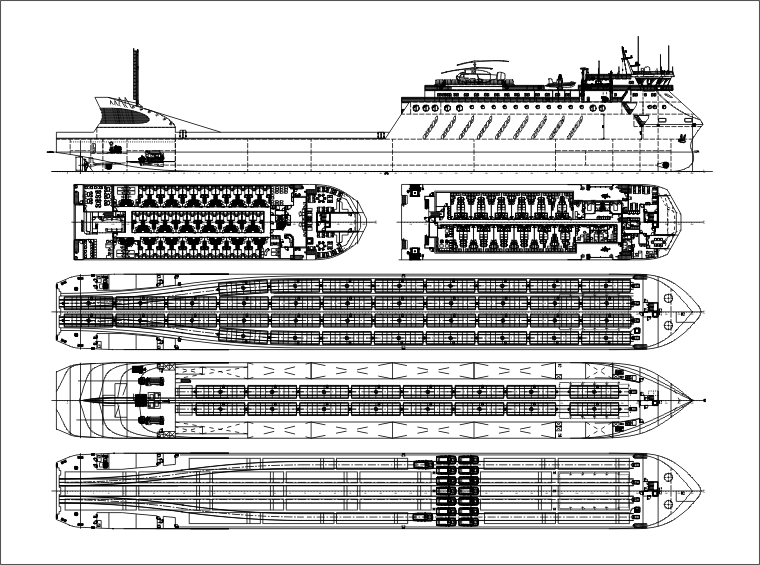

PROJECT CNF18B
Railway train - car - passenger ferry for Caspian Sea (directions: ports Makhachkala, Olya, Aktau, Turkmenbashi, ports of Iran)
Purpose - transportation of railways trains (T-1 gauge) Russian standard with gauge of railway 1520 mm, cargo vehicles, tourist-passengers and business-passengers on own private cars, with the stern cargo handling operations. There are places for accommodation and transportation of 150 passengers onboard the vessel.
|
#
|
Name
|
Value
|
1. |
Main dimension |
Length overall, m |
150.0 |
Length on SWL, m |
147.60 |
Breadth overall (with fenders), m |
17.70 |
Breadth, m |
17.50 |
Depth, m |
7.50 |
L x B x H |
150.00 x 17.70 x 7.50 = 19 913 |
2. |
Draught at SWL, m |
4.50 |
3. |
Deadweight at SWL draught (about), t |
5290 |
4. |
Range, nautical miles |
2500 |
5. |
Endurace: |
by fuel stores, days |
10 |
by fresh water and provision stores, days |
5 |
by sewage tanks (in areas where any discharge are prohibited), days |
2.5 |
6. |
Number of cargo decks |
2 |
7. |
Length of rails (upper deck / double bottom), m |
460 / 200 |
8. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units |
54 |
9. |
Lane meters |
904 |
10. |
Loading capacity for vehicles: |
trucks with a semitrailers (road train) length 12-13.5 m, units |
50 |
private cars, units |
16 |
11. |
Cargo lift |
1 x 188 t |
12. |
Passenger capacity: |
general passenger capacity, pers. |
150 |
superior double cabins with lavatory and douche (including 1 cabin for people with disabilities), pers. |
10 |
double (converted in four-berth) cabins with lavatory and douche, pers. |
92 |
double (converted in four-berth) inner cabins with lavatory and douche, pers. |
48 |
13. |
Restaurant, places |
76 |
14. |
Passenger recreation rooms: |
internet cafe; bar with playing machine; smoking room |
15. |
Additional rooms for passenger service: |
duty free shop; block of showers and WC (including 1 for people with disabilities) |
16. |
Sports and fitness complex: |
gym; sauna; pool |
17. |
Medical block: |
doctor's consulting room; hospital (1 berth); isolation ward (1 berth) |
18. |
Passenger lift |
1 x 3 pers. |
19. |
Russian maritime Register of Shipping class |
KM Ice2 R1 AUT1-ICS OMBO ECO HELIDECK Ro-ro passenger ship |
20. |
ME power, kW |
4 x 2600 |
21. |
Rudder and propeller complex |
2 x FPP + 2 suspended rudders |
22. |
Thrusters: |
bow, kW |
1 x 350 |
stern, kW |
1 x 350 |
23. |
Auxiliary engines: |
diesel-generators, kW |
4 x 300 |
emergency diesel-generator, kW |
1 x 300 |
24. |
Motorboats: |
lifeboats, pers. |
2 x 42 |
speed rescue (StB), pers. |
1 x 15 |
rescue (PS), pers. |
1 x 6 |
25. |
Evacuation system with inflatable rafts |
2 x (101 + 51) pers. |
26. |
Crew and service personal, pers. |
45 |
27. |
Ship speed in deep still water for the clean and recently painted hull at 4.0 m draught and 85% power of ME, knots |
14 |
|
