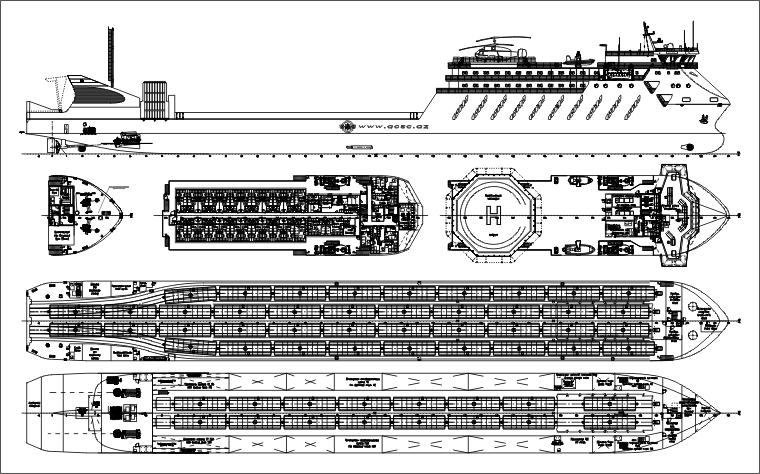

PROJECT CNF18C

Railway train - car - passenger ferry for Caspian Sea
(lines: port Baku (Alyat) - port Turkmenbashi, port Baku (Alyat) - port Aktau)




Purpose - transportation of railways trains (T-1 gauge) Russian standard with gauge of railway 1520 mm, including dangerous cargoes, cargo vehicles, passengers in number of 2 persons for each road train, with the stern cargo handling operations. The vessel intended for transportation of dangerous goods on the open upper deck. There are places for accommodation and transportation of 100 passengers onboard the vessel.



Name Shipyard, building number Keel laying date Launching date Delivery date
Azerbaijan Baku Shipyard, 108 09.12.17 13.12.19 01.03.21
Akademik Zarifa Alieva Baku Shipyard, 109 04.03.18 01.03.21 28.04.22


# Name Value
1. Main dimension
Length overall, m 154.50
Length between PP, m 147.0
Breadth overall (with fenders), m 17.70
Breadth, m 17.50
Depth, m 7.50
L x B x H 154.50 x 17.70 x 7.50 = 20 510
2. Draught at DWL (design), m 4.50
3. Deadweight at DWL draught (about), t 5540
4. Endurace:
by fuel stores, days 10
by fresh water and provision stores, days 5
by sewage tanks
(in areas where any discharge are prohibited), days		 3
5. Range (about), nautical miles 2500
6. Number of cargo decks 2
7. Length of rails (upper deck / double bottom), m 480 / 208
8. Loading capacity for railway cars:
railcars of T-1 gauge with length
between autoreplacers 12020 mm (four-axled), units		 56
railcars of T-1 gauge with length
between autoreplacers 13920 mm (four-axled), units		 46
railcars of T-1 gauge with length
between autoreplacers 14730 mm (four-axled), units		 44
9. Lane meters 900
10. Loading capacity for vehicles:
trucks with a semitrailers (road train)
length 12-13.5 m, units		 50
11. Cargo lift 1 x 188 t
12. Passenger capacity:
general passenger capacity, pers. 100
superior double cabins with lavatory and douche
(including 1 cabin for people with disabilities)		 4
double (converted in four-berth)
cabins with lavatory and douche		 96
13. Restaurant, places 50
14. Passenger recreation rooms: internet cafe;
bar with playing machine;
smoking room
15. Additional rooms for passenger service: duty free shop;
block of showers and WC
(including 1 for people with disabilities)
16. Sports and fitness complex: gym;
sauna;
pool
17. Medical block: doctor's consulting room;
hospital (1 berth);
isolation ward (1 berth)
18. Passenger lift 1 x 3 pers.
19. Russian maritime Register of Shipping class KM R2 AUT1-ICS OMBO
ECO HELIDECK Ro-ro passenger ship
20. ME power, kW 2 x 2600
21. Rudder and propeller complex 2 x FPP +
2 suspended rudders
22. Thrusters:
bow, kW 1 x 350
stern, kW 1 x 350
23. Auxiliary engines:
diesel-generators, kW 4 x 300
emergency diesel-generator, kW 1 x 300
24. Motorboats:
lifeboats, pers. 2 x 22
speed rescue (StB), pers. 1 x 15
rescue (PS), pers. 1 x 6
25. Evacuation system with inflatable rafts 2 x 106 pers.
26. Crew and service personal, pers. 30
27. Ship speed in deep still water
for the clean and recently painted hull
at 4.0 m draught and 85% power of ME, knots		 14
