PROJECT CNF19M

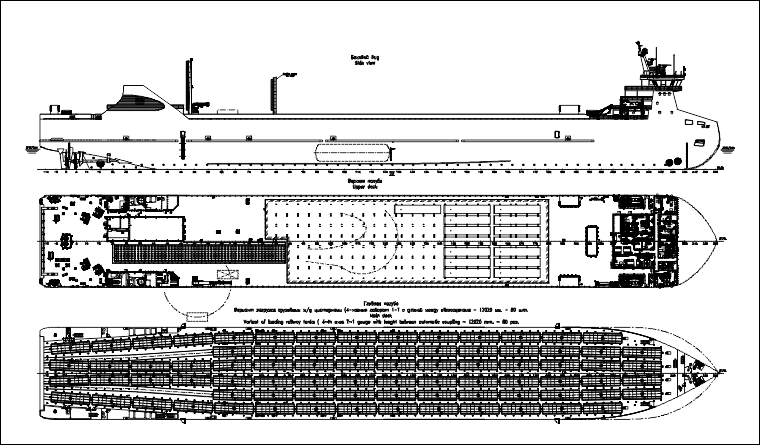

LNG fuel railway ferry Arc4 ice class for Baltic Sea (line port Ust-Luga - port Baltiysk - port Sassnitz)
Purpose - transportation of railways trains Russian standard, and other ro-ro cargoes, including dangerous cargoes, up to 30 refrigerator containers.
The ship has space for 12 people and the transportation of passengers.
Loading vehicles can be carried out both from bridges of ferry complexes, and from demountable shore Ro-Ro bridges installed on the starboard side.
|
Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
Marshal Rokosovskiy |
Neva shipbuilding and ship-repair yard, 191 |
17.10.18 |
21.08.20 |
04.03.22 |
General Chernjahovskij |
Neva shipbuilding and ship-repair yard, 192 |
23.04.19 |
22.05.21 |
06.10.22 |
# |
Name |
Value |
1. |
Main dimension |
Length overall, m |
199.90 |
Length on SWL, m |
196.62 |
Breadth overall (with fenders), m |
27.40 |
Breadth, m |
27.00 |
Depth to the main deck, m |
8.60 |
Depth to the upper deck, m |
14.70 |
L x B x H |
199.90 x 27.40 x 14.70 = 80 516 |
2. |
Draught at SWL, m |
6.0 |
3. |
Deadweight at SWL draught (about), t |
11062 |
4. |
Range, nautical miles |
3000 |
5. |
Endurace: |
by fuel and oil stores, days |
10 |
by provision stores, days |
10 |
by fresh water (the stores can be refilled with a stationary distiller), days |
10 |
by sewage tanks (in areas where any discharge are prohibited), days |
3 |
6. |
Number of cargo decks |
2 |
7. |
Total weight of cargo on the upper deck, t |
up to 600 |
8. |
Length of rails, m |
970 |
9. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units |
80 |
freight cars of T-1 gauge with length between autoreplacers 24620 mm (four-axled), units |
36 |
gondola wagon of T-1 gauge with length between autoreplacers 17670 mm (four-axled), units |
54 |
10. |
Loading capacity for vehicles: |
trucks with a semitrailers length 12-13.5 m (road train 16.5 m) on main deck (without railway trains) |
58 |
cargo trailers length 13.5 m on upper deck |
15 |
11. |
Container capacity (refrigerated containers), TEU |
30 |
12. |
Russian maritime Register of Shipping class |
KM Arc4 AUT1-ICS OMBO ECO GFS Ro-ro ship |
13. |
ME power, kW |
2 x 6300 |
14. |
Rudder and propeller complex |
2 x CPP + 2 semibalanced rudders |
15. |
Thrusters: |
bow, kW |
2 x 1000 |
stern, kW |
1 x 1000 |
16. |
Auxiliary engines: |
diesel-generators, kW |
2 x 1222 |
shaft generators, kW |
2 x 2400 |
emergency diesel-generator, kW |
1 x 400 |
17. |
Life motor boats |
2 x 36 pers. one of boat completed as rescue boat |
18. |
Inflatable life rafts throw over |
4 x 20 pers. + 1 x 6 pers. |
19. |
Crew / berth, pers. |
24 / 36 |
20. |
Full speed, knots |
16.5 |
|
