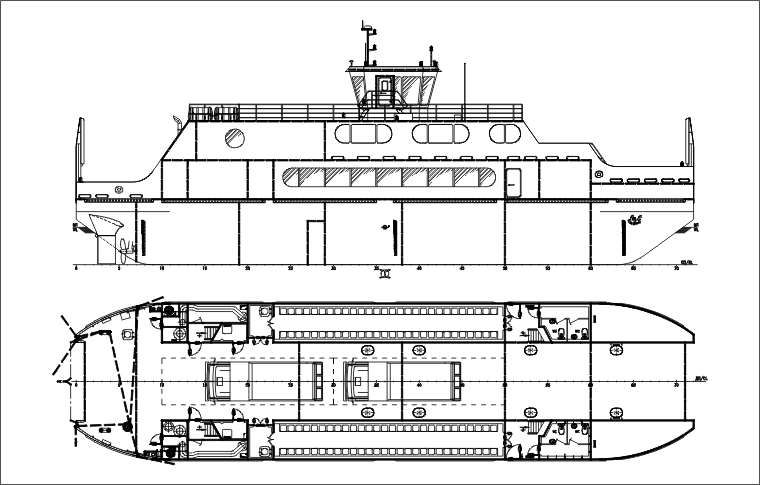

PROJECT RPF14
River cargo - passenger vessel for local lines
with possibility of operation in open pack ice thickness 40 cm of passengers capacity 200 persons
Purpose - carriage of cars and passengers on inland domestic lines correspond grade of Russian Federation of the corresponding category.
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
39.60 |
| Length by DWL, m |
38.22 |
| Breadth overall, m |
10.40 |
| Breadth by hull, m |
10.00 |
| Depth, m |
4.20 |
| L x B x H |
39.60 x 10.40 x 4.20 = 1 730 |
Air draft from BL to an upper edge
of non-removable parts (not greater than), m |
15.70 |
| 2. |
Draught at DWL, m |
2.40 |
| 3. |
Deadweight at DWL draught, t |
349 |
| 4. |
Endurance: |
| by fuel stores, days |
5 |
by fresh water stores, filling of sewage water,
oil-mixture water and garbage, days |
2 |
| 5. |
Number of cargo decks |
1 |
| 6. |
Area of cargo deck, m² |
150 |
| 7. |
Loading capacity for vehicles: |
| trucks, units |
2 |
| private cars, units |
7 |
| 8. |
Ramps |
fore and aft |
| 9. |
Passenger capacity, pers. |
200 |
| 10. |
Russian River Register class |
 P 1,2 (ice 40) A |
| 11. |
ME power, kW |
2 x 479 |
| 12. |
Rudder and propeller complex |
2 x FPP +
2 spade rudders |
| 13. |
Auxiliary engines: |
| diesel-generators, kW |
2 x 180 |
| emergency diesel-generator, kW |
1 x 28 |
| 14. |
Inflatable life rafts throw over |
4 x 51 pers. |
| 15. |
Crew, pers. |
3 |
| 16. |
Speed, knots |
10.8 |
|
