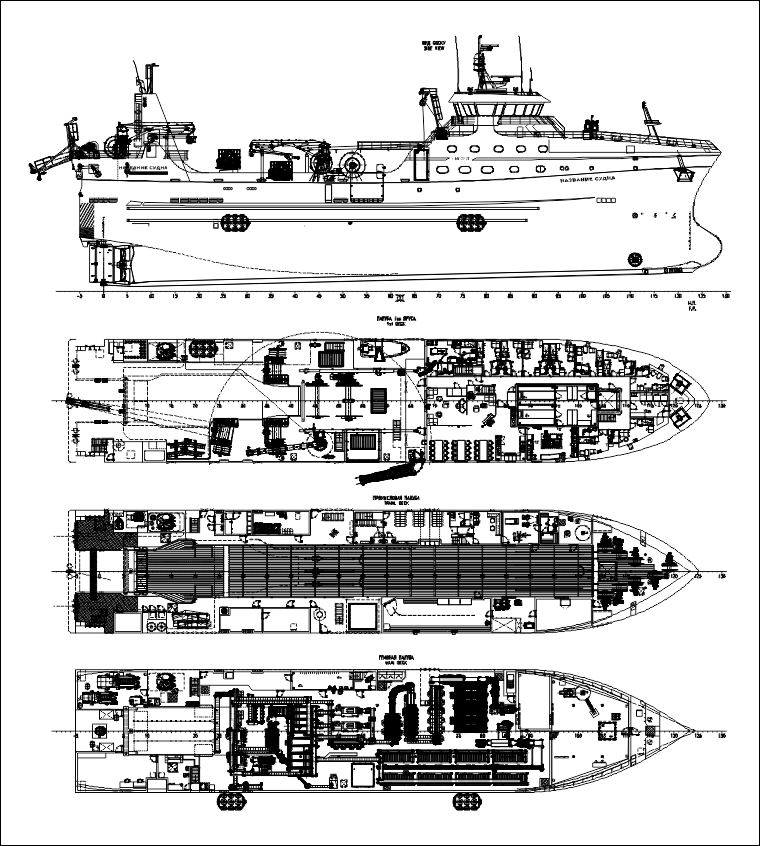

PROJECT KMT02
Chilled stern trawler - processor "Nord Pilgrim" type
Purpose - trawl fishery demersal fish, production at sea: mainly as headed & gutted fish products, fillets, cod roe and liver extraction including fish meal and fish oil.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Nord Pilgrim |
Vyborg SY, 939 |
26.01.18 |
03.09.19 |
|
| Dmitriy Kozharskiy |
Vyborg SY, 950 |
01.11.18 |
19.06.20 |
03.02.23 |
| Kapitan Taran |
Vyborg SY, 949 |
22.09.20 |
03.08.23 |
26.06.25 |
| Leonid Gorbenko |
Vyborg SY, 940 |
25.11.20 |
|
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
80.40 |
| Breadth, m |
15.40 |
| Depth at main deck, m |
6.15 |
| Depth at trawl deck, m |
9.10 |
| L x B x H |
80.40 x 15.40 x 9.10 = 11 267 |
| 2. |
Maximum draught, m |
8.90 |
| 3. |
Deadweight (about), t |
2287 |
| 4. |
Endurance, days |
30 |
| 5. |
Freezer cargo holds capacity, m³ |
2050 |
| 6. |
Fish meal and canning cargo holds capacity, m³ |
260 |
| 7. |
Fish-processing plant capacity: |
| by fillet production (minced meat), t/days |
40 |
| by fish meal, fish oil, t/days |
48 |
| by frozen products, t/days |
80 |
| by canned food, conventional cans/days |
4000 |
| 8. |
Russian Maritime Register of Shipping class |
KM  Ice 3 AUT1 (REF) Fishing vessel OMBO |
| 9. |
ME power, kW |
1 x 4640 |
| 10. |
Rudder and propeller complex |
1 x CPP in non-rotary nozzle +
1 x Becker rudder with flap |
| 11. |
Bow thruster power, kW |
1 x 600 |
| 12. |
Auxiliary engines: |
| diesel-generators, kW |
1 x 1000 +
1 x 520 |
| shaft generator, kW |
3250 |
| emergency diesel-generator, kW |
1 x 110 |
| 13. |
Crew and plant personnel, pers. |
46 |
| 14. |
Speed, knots |
15 |
|
