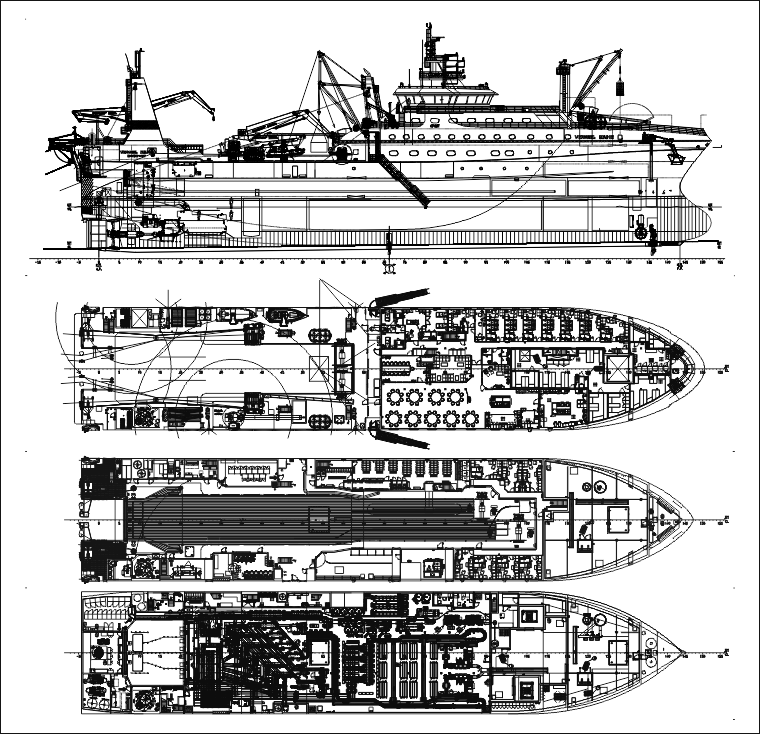

Big refrigerating trawler-processor for the Far East "Kapitan Vdovichenko" type
# |
Name |
Value |
1. |
Main dimension |
Length overall (about), m |
108.20 |
Breadth, m |
21.00 |
Depth to the main deck, m |
8.35 |
Depth up to trawl deck, m |
11.55 |
L x B x H |
108.20 x 21.00 x 8.35 = 18 973 |
2. |
Draught from BL, m |
8.35 |
3. |
Deadweight, including all fishing gear, t |
5700 |
4. |
Endurance by fuel and provision stores, days |
45 |
5. |
Processing equipment capacity, t/day: |
fish processing system |
260 |
fish meal plant |
250 |
surimi production |
80 |
6. |
Refrigerating holds, m³: |
main refrigerating hold |
4000 |
fish meal hold/bow refrigerating hold |
400 |
fish meal hold/refrigerating hold in FD |
600 |
storage of carrying carton hold/refrigerating hold |
500 |
7. |
Fish oil tanks, m³ |
100 |
8. |
Deck cargo cranes (lifting capacity x boom): |
aft |
8 t x 8 m |
middle |
8 t x 17 m |
9. |
Fore / aft gantries with cargo double derricks, t |
5 / 5 |
10. |
Russian maritime Register of Shipping class |
KM IA Super (hull) Ice 3 (power) AUT 1 REF BWM (T) Fishing vessel |
11. |
ME power, kW |
1 x 8120 |
12. |
Rudder and propeller complex |
CPP in non rotate nozzle + ruder with flap |
13. |
Bow thruster, kW |
1 x 950 |
14. |
Auxiliary engines: |
diesel-generators, kW |
1 x 1880 1 x 1460 |
shaft generator, kW |
4126 |
emergency diesel-generator, kW |
1 x 240 |
15. |
Crew / factory staff, pers. |
40 / 99 |
16. |
Speed, knots |
15 |
17. |
Duty motorboat |
2 x 6 pers. |
18. |
Inflatable liferafts |
8 x 35 pers. + 3 x 25 pers. |
