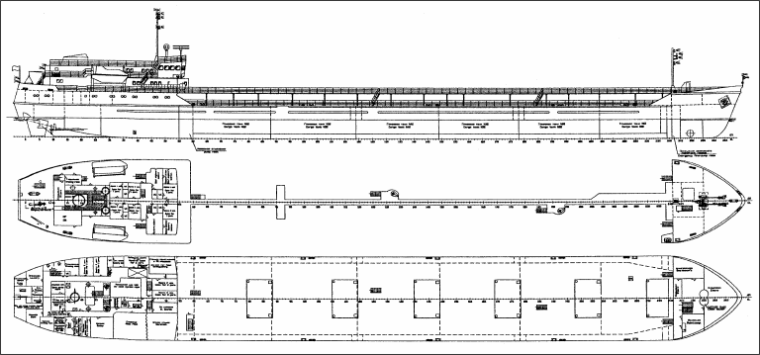

PROJECT 630
5704 DWT chemical - product tanker IMO2 (vegetable oil) "Mechanic Khachepuridze" type
Purpose - sea and mixed (river-sea) carrying of oil and petroleum products without restrictions for flash-point and vegetable oil.
|
| # |
Name |
Value |
| 1. |
Main dimensions |
| Length overall, m |
138.00 |
| Length, m |
134.20 |
| Breadth overall, m |
16.70 |
| Breadth, m |
16.50 |
| Depth, m |
6.40 |
| L x B x H |
138.00 x 16.70 x 6.40 = 14 749 |
| 2. |
Draught (in sea / in river), m |
4.09 / 3.60 |
| 3. |
Ballast draft, m |
2.85 |
| 4. |
Deadweight (in sea / in river), t |
5704 / 4511 |
| 5. |
Endurance (in sea / in river), days |
10 / 10 |
| 6. |
Range, nautical miles |
3500 |
| 7. |
Cargo carrying capacity (in sea / in river), t |
5525 / 4400 |
| 8. |
Number of cargo tanks |
12 |
| 9. |
Cargo tanks capacity, m³ |
6300 |
| 10. |
Number of manifolds / sorts of cargo |
2 manifolds / 1 sort |
| 11. |
Cargo pumps, m³/h |
2 x 400-450 |
| 12. |
Cargo heating |
PIK-180 (steam) |
| 13. |
Ballast tank capacity, m³ |
3089 |
| 14. |
Russian maritime Register of Shipping class |
KM  L4  oil carrier, type 2 (vegetable oil) (ESP) |
| 15. |
ME power, kW |
2 x 882 |
| 16. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 165 |
| emergency diesel-generator, kW |
1 x 59 |
| 17. |
Crew / berth, pers. |
19 / 19 |
| 18. |
Speed, knots |
10.4 |
|
