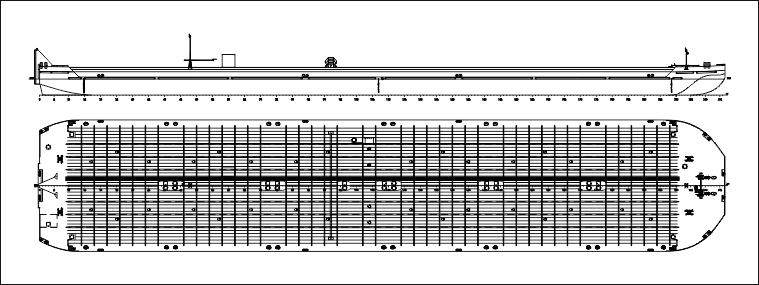

PROJECT ROB20
6000 t cargo capacity non-self-propelled oil tanker O 2,0 navigation area "Belmax" type
Purpose - carrying of the petroleum products with flash-point 61°C and above, main type of cargo - fuel oil. Design range of cargo density - 0.92...1.015 t/m³.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Belmax 1 |
Oka SY, 4101 |
22.11.17 |
19.04.18 |
17.05.18 |
| Belmax 2 |
Oka SY, 4102 |
30.11.17 |
22.05.18 |
31.05.18 |
| Belmax 3 |
Oka SY, 4103 |
20.12.17 |
07.06.18 |
29.06.18 |
| Belmax 4 |
Oka SY, 4104 |
19.01.18 |
05.07.18 |
16.07.18 |
| Belmax 5 |
Oka SY, 4105 |
26.03.18 |
25.07.18 |
31.07.18 |
| Belmax 6 |
Oka SY, 4106 |
29.03.18 |
15.08.18 |
20.08.18 |
| Belmax 7 |
Oka SY, 4107 |
26.04.18 |
24.08.18 |
29.08.18 |
| Belmax 8 |
Oka SY, 4108 |
26.07.18 |
17.04.19 |
29.04.19 |
| # |
Name |
Value |
| 1. |
Main dimensions |
| Length overall, m |
118.79 |
| Length between PP, m |
117.90 |
| Breadth overall, m |
22.80 |
| Breadth, m |
22.60 |
| Depth scantling, m |
4.00 |
| Depth to the main deck, m |
3.00 |
| Depth of trunk, m |
1.00 |
| L x B x H, m |
118.79 x 22.80 x 4.00 = 10 831 |
| 2. |
Draught at DWL, m |
2.75 |
| 3. |
Deadweight in river at DWL draught, t |
6000 |
| 4. |
Number of tanks (cargo / slop) |
12 / 2 |
| 5. |
Tanks capacity (cargo / slop), m³ |
6870 (6530 / 340) |
| 6. |
Russian River Register class |
 O 2,0 |
| 7. |
Towing attachment |
Vertical drag-bar for
automatic drag lock
O-200 type |
|
