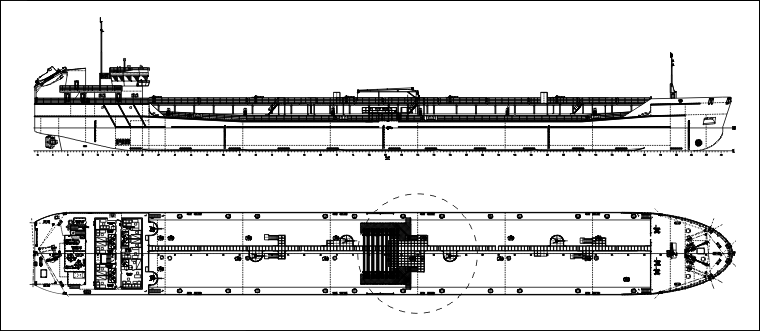

PROJECT RST22M
7114 DWT chemical - product tanker IMO2 (ECO PROJECT) "Mubariz Ibrahimov" type
Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products, including benzine without restrictions for flash-point. Providing simultaneous carriage three sorts of cargo.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| |
Beshiktash Shipyard |
|
|
|
| Mubariz Ibrahimov |
12 |
11.12.09 |
20.12.10 |
15.02.11 |
| Capitan Nagdaliyev |
13 |
11.12.09 |
04.02.11 |
30.03.11 |
| Lerik |
14 |
18.12.09 |
24.06.11 |
25.08.11 |
| Gobustan |
15 |
18.12.09 |
27.08.11 |
21.10.11 |
| Mugan |
16 |
23.12.09 |
29.11.11 |
10.02.12 |
| Bakhtiyar Vahabzade |
17 |
23.12.09 |
24.05.12 |
15.03.13 |
| Shovket Alekperova |
18 |
08.08.11 |
30.04.14 |
30.08.14 |
| |
Turkter shipyard |
|
|
|
| Mecid Aslanov |
NB78 |
03.10.13 |
18.06.14 |
21.02.15 |
| Begim Aslanova |
NB79 |
18.11.13 |
14.11.14 |
18.05.15 |
| Poet Qabil |
NB80 |
07.03.14 |
26.01.15 |
01.07.15 |
| Armada Breeze |
NB81 |
17.04.14 |
05.08.15 |
06.11.15 |
| Armada Fair |
NB82 |
26.08.14 |
14.09.15 |
26.11.15 |
| |
Armada Shipyard |
|
|
|
| Olga Golovushkina |
001 |
21.05.14 |
07.03.15 |
25.06.15 |
| Armada Praid |
002 |
21.05.14 |
02.09.15 |
11.12.15 |
| # |
Name |
Value |
| 1. |
Main dimensions |
| Length overall, m |
139.95 |
| Length between PP, m |
134.50 |
| Breadth overall, m |
16.83 |
| Breadth, m |
16.60 |
| Depth, m |
6.00 |
| Depth of trunk, m |
1.00 |
| L x B x H |
139.95 x 16.83 x 6.00 = 14 132 |
| Air draft from WL at draught d = 3.00 m, m |
14.20 |
| 2. |
Draught (in sea / in river), m |
4.60 / 3.60 |
| 3. |
Ballast draft, m |
3.12 |
| 4. |
Deadweight (in sea / river), t |
7114 / 4717 |
| 5. |
Endurance (in sea / river), days |
20 / 10 |
| 6. |
Range, nautical miles |
4000 |
| 7. |
Cargo carrying capacity (in sea / in river), t |
6609 / 4409 |
| 8. |
Number of tanks, (cargo / slop) |
8 (6 / 2) |
| 9. |
Cargo tanks capacity (including slop tanks), m³ |
8089 |
| 10. |
Number of manifolds / sorts of cargo |
3 manifolds / 3 sorts |
| 11. |
Cargo pumps, m³/h |
6 x 200 |
| 12. |
Tank wash system
and cleaning of washing liquid |
slop tank's pump output 80 m³/h |
| 13. |
Ballast tanks capacity, m³ |
3606 |
| 14. |
Russian maritime Register of Shipping class |
KM  Ice 1 R2 AUT1-ICS VCS ECO-S BWM OMBO
Oil tanker/chemical tanker type 2 (vegetable oil) (ESP) |
| 15. |
ME power, kW |
2 x 1200 |
| 16. |
Rudder and propeller complex |
2 x Rudderpropellers |
| 17. |
Bow thruster, kW |
230 |
| 18. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 292 |
| emergency diesel-generator, kW |
1 x 136 |
| 19. |
Boilers: |
| thermal, t/h |
2 x 2.0 |
| exhaust gas, t/h |
2 x 0.38 |
| 20. |
Crew / berth, pers. |
12 / 14 |
| 21. |
Speed (at draft d = 4.60 m and 85% MCR), knots |
10.5 |
|
