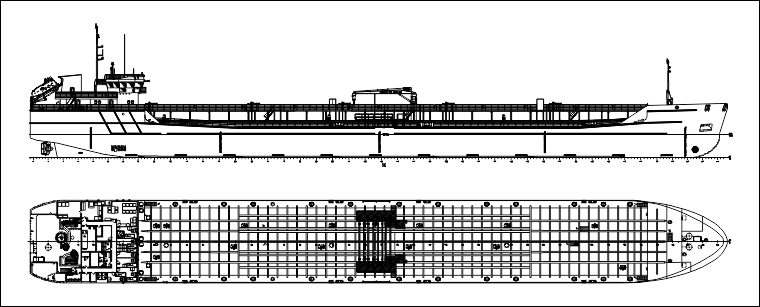

PROJECT RST22TP
7014 DWT chemical - product tanker of IMO2 type
Purpose - sea and mixed (river-sea) carrying of 53 chemically dangerous cargo with ensuring temperature of carrying cargo up to 50°C. Providing simultaneous carriage six sorts of cargo.
|
Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
Marlin |
Volga shipbuilding and ship-repair yard, 371 |
17.06.10 |
29.05.19 |
20.08.20 |
Kaluga |
Volga shipbuilding and ship-repair yard, 372 |
10.11.10 |
02.06.21 |
10.12.21 |
# |
Name |
Value |
1. |
Main dimensions |
Length overall, m |
139.95 |
Length, m |
134.50 |
Breadth overall, m |
16.83 |
Breadth, m |
16.60 |
Depth, m |
6.00 |
Depth of trunk, m |
1.00 |
L x B x H |
139.95 x 16.83 x 6.00 = 14 132 |
Air draft from WL at draught d = 3.00 m, m |
14.20 |
2. |
Draught (in sea / in river), m |
4.60 / 3.60 |
3. |
Ballast draft, m |
3.12 |
4. |
Deadweight (in sea / river), t |
7014 / 4617 |
5. |
Endurance (in sea / river), days |
20 / 10 |
6. |
Range, nautical miles |
4000 |
7. |
Number of tanks (cargo / slop) |
8 (6 / 2) |
8. |
Tanks capacity (cargo / slop), m³ |
7833 / 256 |
9. |
Ballast tanks capacity, m³ |
3606 |
10. |
Number of manifolds / sorts of cargo |
6 manifolds / 6 sorts |
11. |
Cargo pumps: |
3 x 300 m³/h + 3 x 200 m³/h |
12. |
Tank wash system and cleaning of washing liquid |
slop tank's pump output 80 m³/h |
13. |
Russian maritime Register of Shipping class |
KM Ice1 R2 AUT1-ICS VCS OMBO BWM (T) oil/chemical tanker type 2 (ESP) |
14. |
ME power, kW |
2 x 1200 |
15. |
Rudder and propeller complex |
2 x Rudderpropellers |
16. |
Bow thruster, kW |
230 |
17. |
Auxiliary engines: |
diesel-generators, kW |
3 x 220 |
emergency diesel-generator, kW |
1 x 100 |
18. |
Boilers: |
thermal, kW |
1 x 1750 |
exhaust gas, kW |
2 x 250 |
19. |
Crew / berth, pers. |
12 / 15 |
20. |
Speed, knots |
10.5 |
|
