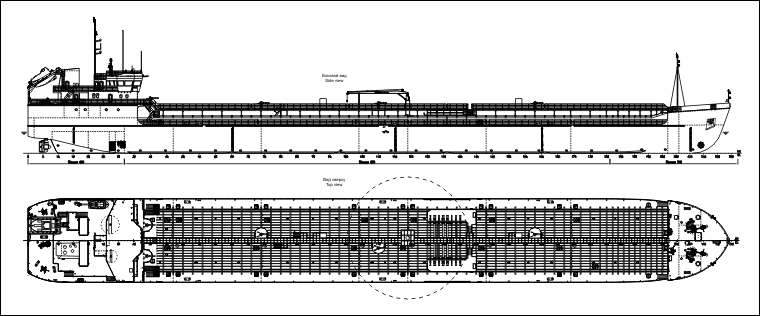

PROJECT RST25
6710 DWT chemical - product tanker "Alexandr Shemagin" type
Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products, including gasoline without restrictions for flash-point, with ensuring temperature of carrying cargo up to 50°C. Simultaneous carriage 2 sorts of cargo is provided.
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| |
Verf' brat'ev Nobel' |
|
|
|
| Alexandr Shemagin |
|
21.12.10 |
15.11.11 |
26.07.12 |
| Pavel Judin |
|
17.05.11 |
28.08.12 |
15.11.12 |
| Julij Makarenkov |
|
01.11.11 |
20.11.12 |
29.05.13 |
| |
Zelenodolsk Shipyard |
|
|
|
| Almetevsk |
271 |
22.04.11 |
13.06.12 |
15.03.13 |
| Bavly |
272 |
23.06.11 |
07.09.12 |
19.06.13 |
| |
Shipyard of Astrahan "Lotos" |
|
|
|
| Sergey Terskov |
25004 |
06.09.11 |
24.07.15 |
07.04.16 |
| Yakov Gunin |
25005 |
06.09.11 |
26.09.15 |
12.07.16 |
| Volgotrans - 2501 |
25006 |
25.03.16 |
28.06.19 |
15.09.20 |
| Volgotrans - 2502 |
25007 |
07.04.16 |
02.08.24 |
|
| # |
Name |
Value |
| 1. |
Main dimensions |
| Length overall, m |
139.99 |
| Length between PP, m |
138.24 |
| Breadth scantlings, m |
16.60 |
| Depth, m |
5.50 |
| L x B x H |
139.99 x 16.60 x 5.50 = 12 781 |
| 2. |
Draught (in sea (at SWL) / in river), m |
4.175 / 3.60 |
| 3. |
Deadweight in sea at SWL draught, t |
6710 |
| 4. |
Deadweight in river at draught d = 3.60 / 3.40 m, t |
5229 / 4692 |
| 5. |
Endurance (in sea / in river), days |
20 / 10 |
| 6. |
Number of tanks (cargo / slop) |
8 (6 / 2) |
| 7. |
Cargo carrying capacity
(including slop tanks), m³ |
6990 |
| 8. |
Cargo pumps, m³/h |
6 x 150 |
| 9. |
Ballast tanks capacity, m³ |
4349 |
| 10. |
Russian maritime Register of Shipping class |
KM  Ice1 R2-RSN AUT1-ICS VCS
ECO BWM OMBO Oil tanker (ESP) |
| 11. |
ME power, kW |
2 x 1200 |
| 12. |
Rudder and propeller complex |
2 x Rudderpropellers |
| 13. |
Bow thruster, kW |
230 |
| 14. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 292 |
| emergency diesel-generator, kW |
1 x 136 |
| 15. |
Thermal boilers, t/h |
2 x 2 |
| 16. |
Crew / berth, pers. |
12 / 14 |
| 17. |
Speed (at SWL draught and 85% MCR), knots |
10.5 ±0.3 |
|
