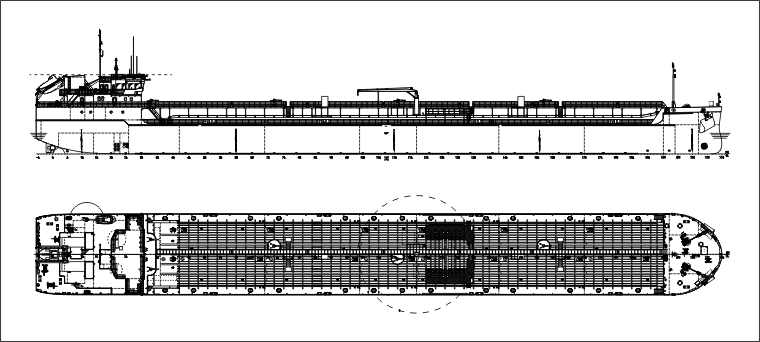

PROJECT RST28
7096/5377 DWT bunkering - product tanker for transportation of petroleum products without restriction
of temperature of flash-point and bunkering of vessels with heavy and light grades of fuel
Purpose - bunkering vessels with heavy and light grades of fuel. Transportation of petroleum products without restriction of temperature of flash-point.
|
| # |
Name |
Value |
| 1. |
Main dimensions |
| Length overall, m |
140.85 |
| Length between PP, m |
137.10 |
| Breadth scantlings, m |
16.70 |
| Depth, m |
6.00 |
| L x B x H |
140.85 x 16.70 x 6.00 = 14 113 |
| 2. |
Draught (in sea / in river), m |
4.25 / 3.60 |
| 3. |
Deadweight (in sea / in river), t |
7096 / 5377 |
| 4. |
Endurance (in sea / in river), days |
20 / 12 |
| 5. |
Number of tanks (cargo / slop) |
8 (6 / 2) |
| 6. |
Cargo tanks capacity (including slop tanks), m³ |
8108 |
| 7. |
Number of manifolds / sorts of cargo |
3 manifolds / 3 sorts |
| 8. |
Cargo pumps, m³/h |
6 x 200 |
| 9. |
Cargo heating |
coils |
| 10. |
Tank wash system
and cleaning of washing liquid |
slop tank's pump output 80 m³/h |
| 11. |
Russian maritime Register of Shipping class |
KM  Ice1 R2 AUT1-ICS OMBO
VCS ECO-S Oil tanker (ESP) |
| 12. |
ME power, kW |
2 x 1200 |
| 13. |
Rudder and propeller complex |
2 x Rudderpropellers |
| 14. |
Bow thruster, kW |
230 |
| 15. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 300 |
| emergency / harbor diesel-generator, kW |
1 x 125 |
| 16. |
Thermal boilers, kW |
2 x 1500 |
| 17. |
Crew / berth, pers. |
12 / 14 + pilot |
| 18. |
Speed (at draft d = 4.20 m and 100% MCR), knots |
10.0 |
|
