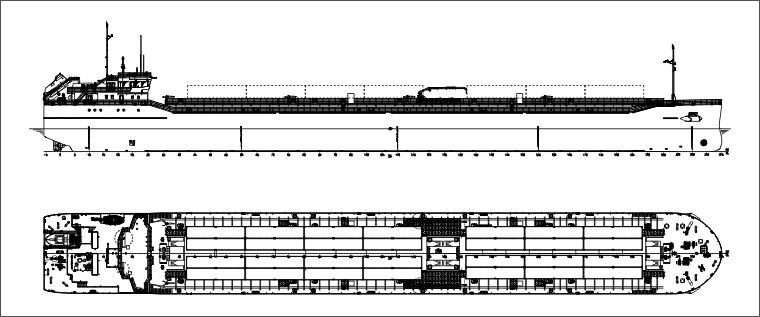

PROJECT RST34
5065 / 7872 DWT combined vessel (chemical - product tanker / dry cargo vessel)
Purpose - sea and mixed (river-sea) carrying: in cargo tanks: crude oil and petroleum products with density up to 1.015 t/m³, without restrictions for flash-point and danger cargoes in bulk according to "Chemical 2" class; in cargo holds and on open deck: general and bulk cargoes include grain, steel and steel rolls of 12-20 tones with diameter 1.5 m, timber, coal, TEU and FEU, also dry danger cargoes of classes 1, 2, 3, 4, 5, 6.1, 8, 9 in accordance with IMDG Code and MHB cargoes in accordance with IMSBC Code.
|
# |
Name |
Value |
1. |
Main dimensions |
Length overall, m |
141.00 |
Length between PP, m |
137.14 |
Breadth overall, m |
16.98 |
Breadth scantlings, m |
16.90 |
Depth, m |
8.10 |
L x B x H |
141.00 x 16.98 x 8.10 = 19 393 |
Air draft from BL to an upper edge of non-removable parts, m |
16.30 |
2. |
Draught (in sea (at SWL) / in river), m |
4.70 / 3.60 |
3. |
Deadweight (in sea (at SWL) / in river), t |
7872 / 5065 |
4. |
Endurance (in sea / in river), days |
20 / 12 |
5. |
Number of tanks (cargo / slop) |
8 / 1 |
6. |
Cargo tanks capacity (including slop tanks), m³ |
6604 |
7. |
Number of manifolds / sorts of cargo |
2 manifolds / 2 sorts |
8. |
Cargo pumps, m³/h |
8 x 150 |
9. |
Slop tank pump, m³/h |
1 x 150 |
10. |
Cargo heating |
coils |
11. |
Number of cargo holds |
2 |
12. |
Container capacity, (TEU / FEU) |
140 / 70 |
13. |
Cargo hold hatches type |
multi-folding |
14. |
Russian maritime Register of Shipping class |
KM Ice1 R2-RSN(4.5) AUT1-ICS OMBO VCS Oil/Chemical tanker type2 (ESP) |
15. |
ME power, kW |
2 x 1200 |
16. |
Rudder and propeller complex |
2 x Rudderpropellers |
17. |
Bow thruster, kW |
200 |
18. |
Auxiliary engines: |
diesel-generators, kW |
3 x 296 |
emergency diesel-generator, kW |
1 x 150 |
19. |
Thermal boilers, t/h |
2 x 2.0 |
20. |
Crew / berth, pers. |
12 / 14 + pilot |
21. |
Speed (at draft d = 4.70 m and 100% MCR), knots |
10.2 |
|
