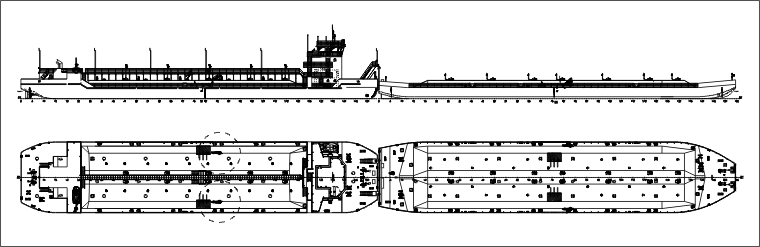

TUG-BARGE TRAIN CONSISTING OF RT63 AND ROB21 PROJECTS

Shallow-draft oil-cargo integrated vessel for East Basin Rivers




Purpose - carriage of liquid cargoes with flash-point >60°C by Inland waterways of the Russian Federation and operation in tug-barge combination.

Characteristics of vessels see RT63 and ROB21.




# Name Value
1. Main dimensions
Length overall, m 170.40
Breadth overall, m 17.20
Breadth on DWL, m 17.0
2. Draught at DWL, m 1.80
3. Deadweight in river at draught
d = 1.40 / 1.60 / 1.80 / 2.0 / 2.15 / 2.35 m (about), t
2008 / 2566 / 3111 / 3656 / 4067 / 4619
4. Cargo tanks capacity, m³ 5692
5. Russian River Register class of tanker-pushers O 2,0 (ice 20) A
6. Russian River Register class of barge R 1,2 (ice 20)
7. ME power, kW 2 x 746
8. Crew / berth, pers. 8 / 10
