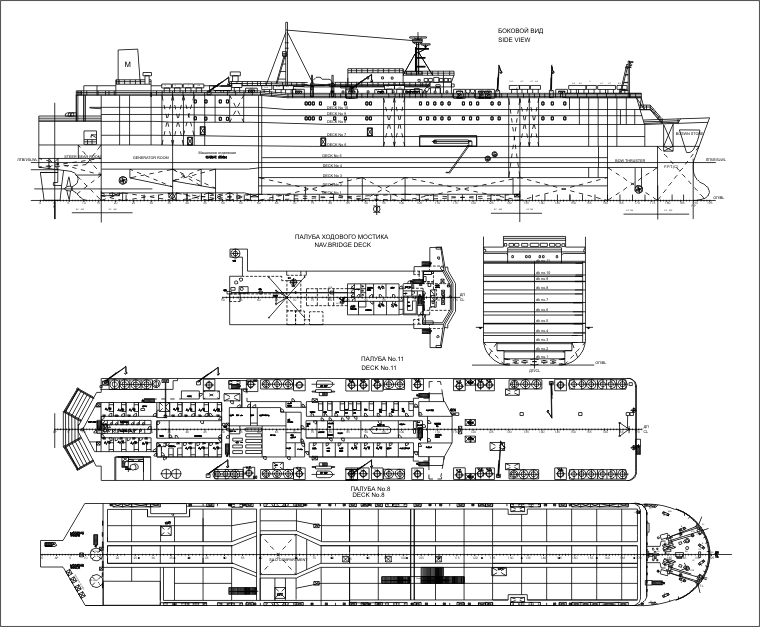

PROJECT LSC01
Livestock carrier "Almahmoud-2"
| |
|
Purpose - carrying of livestock (cattles and sheeps) on 10 decks (deck No 9 only for transportation of sheeps). Loading and unloading of livestock by side ports with connected outboard slope ramps.
|
| |
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Almahmoud-2 |
Torlak |
|
|
18.11.10 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
149.90 |
| Length LLC-66, m |
143.37 |
| Length between PP, m |
142.90 |
| Length scantling (according Part II "Hull" RS Rules), m |
142.25 |
| Breadth scantlings, m |
22.80 |
| Depth to upper deck (Deck N11), m |
22.96 |
| Depth to forecastle deck (Deck N8), m |
16.99 |
| Depth to freeboard deck (Deck N6), m |
12.10 |
| 2. |
Draught at SLWL, m |
8.46 |
| 3. |
Deadweight (γ = 1.025 t/m³), t |
8 443 |
| 4. |
Capacity of ballast tanks, m³ |
2 363 |
| 5. |
Numbers of cargo decks |
10 |
| 6. |
Summary area of cargo decks, m²: |
13 200 |
| - area of decks for cattles, m² |
11 300 |
| - area of decks for sheeps only (deck N9), m² |
1 900 |
| 7. |
Number of carrying cattles with average weight 500 kg |
7 500 |
| 8. |
Number of carrying sheeps (deck N9) with average weight 40 kg |
5 700 |
| 9. |
Capacity of silo compartments, m³ |
2 282 |
| 10. |
Fresh water generator capacity, m³/day |
120 |
| 11. |
Russian maritime Register of Shipping class |
KM  |
| 12. |
Main engine power |
1 x 12 876 |
| 13. |
Gross Tonnage |
18 361 |
| 14. |
Net Tonnage |
10 979 |
| 15. |
Service speed, knots |
21.0 |
| 16. |
Crew, pers. |
60 |
|
| |
|
