PROJECT LSC02

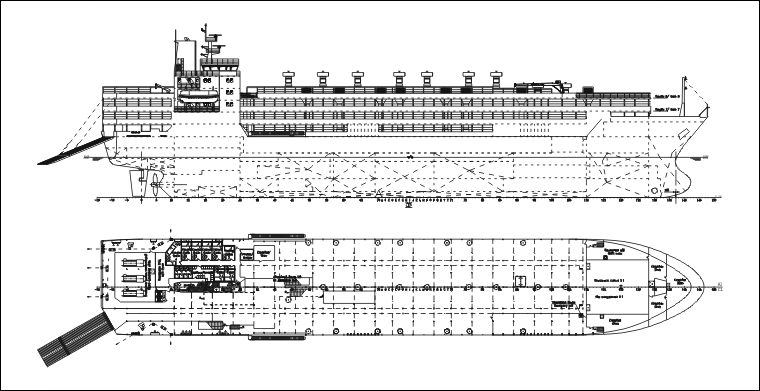

Livestock carrier "Gracia Del Mar"
| |
|
Purpose - carrying of livestock (cattle, sheeps and camels) on 8 decks. Loading and unloading cattles through aft apparel.
|
| |
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Gracia Del Mar |
Torlak |
|
|
01.10.11 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
122.77 |
| Length LLC-66, m |
109.92 |
| Length between PP, m |
108.00 |
| Length scantling (according Part II "Hull" RS Rules), m |
110.09 |
| Breadth scantlings, m |
19.40 |
| Depth to forecastle deck, m |
15.30 |
| Depth to the Main deck (Deck No 6), m |
12.30 |
| Depth to freeboard deck, m |
9.02 |
| 2. |
Draught at SLWL, m |
8.144 |
| 3. |
Deadweight (γ = 1.025 t/m³), t |
6011 |
| 4. |
Capacity of ballast tanks, m³ |
1748 |
| 5. |
Numbers of cargo decks |
8 |
| 6. |
Summary area of cargo decks, m² |
8718 |
| 7. |
Number of carrying cattles with average weight 500 kg |
5175 |
| 8. |
Capacity of silo compartment, m³ |
2186 |
| 9. |
Capacity of fresh water tanks, m³ |
319.2 |
| 10. |
Fresh water generator capacity, m³/day |
3 x 120 |
| 11. |
Russian maritime Register of Shipping class |
KM Livestock carrier |
| 12. |
Main engine power, kW |
1 x 4416 |
| 13. |
Gross Tonnage |
11649 |
| 14. |
Net Tonnage |
6644 |
| 15. |
Service speed, knots |
14.5 |
| 16. |
Crew, pers. |
42 |
|
| |
|
