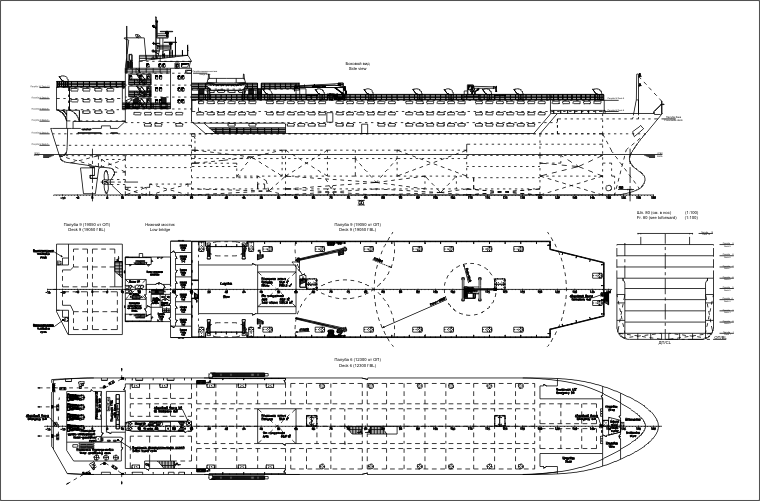

PROJECT LSC03
Livestock carrier "Abou Karim III"
| |
|
Purpose - carrying of livestock (cattles and sheeps) on 9 decks. Loading and unloading of livestock by side ports with connected outboard slope ramps.
|
| |
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Abou Karim III |
Torlak |
|
|
19.05.11 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
122.77 |
| Length LLC-66, m |
109.92 |
| Length between PP, m |
108.00 |
| Length scantling (according Part II "Hull" RS Rules), m |
110.09 |
| Breadth scantlings, m |
19.40 |
| Depth to forecastle deck, m |
15.30 |
| Depth to the Main deck (Deck No 6), m |
12.30 |
| Depth to freeboard deck, m |
9.02 |
| 2. |
Draught at SLWL, m |
8.144 |
| 3. |
Deadweight (γ = 1.025 t/m³), t |
6490 |
| 4. |
Capacity of ballast tanks, m³ |
1512 |
| 5. |
Numbers of cargo decks |
9 |
| 6. |
Summary area of cargo decks, m²: |
8267 |
| 7. |
Number of carrying cattles with average weight 500 kg |
4792 |
| 8. |
Capacity of silo compartment, m³ |
1082 |
| 9. |
Capacity of fresh water tanks, m³ |
331 |
| 10. |
Fresh water generator capacity, m³/day |
120 |
| 11. |
Russian maritime Register of Shipping class |
KM  Livestock carrier |
| 12. |
Main engine power |
1 x 4416 |
| 13. |
Gross Tonnage |
10676 |
| 14. |
Net Tonnage |
5842 |
| 15. |
Service speed, knots |
14.5 |
| 16. |
Crew, pers. |
40 |
|
| |
|
