PROJECT LSC04

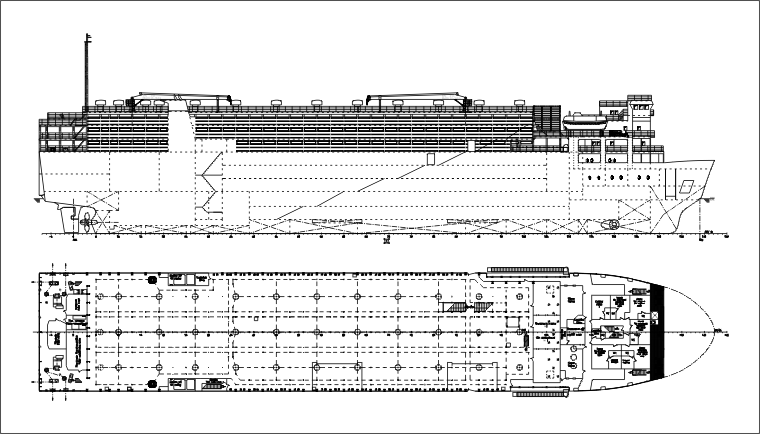

Livestock carrier "ZAHER I"
| |
|
Purpose - carrying of livestock (cattles and sheeps) on 8 decks. Loading and unloading of livestock by side ports with connected outboard slope ramps.
|
| |
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| ZAHER I |
Sefine, Yalova, Turkey |
|
|
23.04.12 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
120.20 |
| Length LLC-66, m |
111.81 |
| Length between PP, m |
111.20 |
| Length scantling (according Part II "Hull" RS Rules), m |
112.07 |
| Breadth scantlings, m |
21.00 |
| Depth to forecastle deck, m |
11.50 |
| Depth to the Upper deck (Deck No 6), m |
14.50 |
| Depth to freeboard deck , m |
7.50 |
| 2. |
Draught at SLWL, m |
6.768 |
| 3. |
Deadweight SLWL (γ = 1.025 t/m³), t |
6 772 |
| 4. |
Capacity of ballast tanks, m³ |
2804 |
| 5. |
Numbers of cargo decks |
8 |
| 6. |
Summary area of cargo decks, m²: |
8 713 |
| 7. |
Number of carrying cattles with average weight 500 kg |
5051 |
| 8. |
Capacity of silo compartment, m³ |
1872 |
| 9. |
Capacity of fresh water tanks, m³ |
989 |
| 10. |
Fresh water generator capacity, m³/day |
3 x 120 |
| 11. |
Russian maritime Register of Shipping class |
KM  Livestock carrier |
| 12. |
Main engine power, kW |
1 x 4720 |
| 13. |
Gross Tonnage |
12 630 |
| 14. |
Net Tonnage |
5 542 |
| 15. |
Service speed, knots |
14.5 |
| 16. |
Crew, pers. |
40 |
|
| |
|
