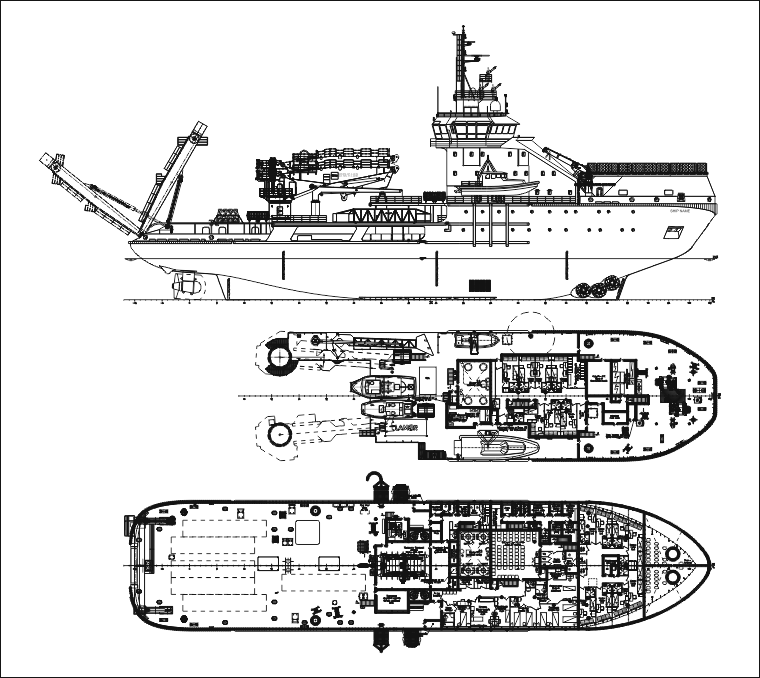

PROJECT MPSV06
Multipurpose salvage icebreaker of 7 MW power "Beringov proliv" type
|
Purpose stand by, rescue operation in areas of shipping, fishing, sea oil and gas fields; •
providing technical support and assistance in dangerous for shipping and sea foods production areas, servicing of transport operations in ports; •
search of and assistance to vessel is in distress; •
search, rescue, evacuation and placing of people, providing first aid to injured persons; •
refloat from ground and reef damaged vessels, pumping out water from flooded compartments; •
towing service of damaged vessels and objects to shelter area, and also providing sea towing of vessels, floating objects and constructions in ice conditions and at open water; •
providing assistance to vessels and rescue operations in ice conditions and at open water; •
providing ice - breaker operations in port and near port waters, and in freezing non-arctic seas at thickness of ice up to 1.5 m; •
providing assistance at fire fighting at floating and coastal objects accessible from sea; •
supply and logistic support, including performing underwater engineering operations with divers at depth up to 60 m; •
performance of deep-water diving engineering operations with an opportunity of long stay of divers under pressure with working depth up to 300 meters; •
fire fighting of burning fuel on water, oil spills response service emergency oil and oil product spill, including with flash point lower than 60°C.; •
survey and cleaning underwater hull of vessels, floating and coastal objects; •
inspection of a sea-bottom and damaged objects on depths down to 1000 m by towing equipment and ROVs; •
take off and landing platform for reception of the helicopter "Ka-32" type without permanent basing.
|
|
Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
|
Amurskij shipbuilding yard |
|
|
|
Kerchenskiy proliv |
360 |
21.07.10 |
|
|
|
Nordic Yards Wismar GmBH, Wismar (Germany) |
|
|
|
Beringov proliv |
217 |
12.11.13 |
21.09.14 |
10.10.15 |
Murman |
218 |
12.11.13 |
21.09.14 |
22.11.15 |
# |
Name |
Value |
1. |
Main dimension |
Length overall (with tug fenders), m |
86.00 |
Length overall, m |
85.38 |
Length Convention, m |
77.96 |
Length RS Rules, m |
74.37 |
Length between PP, m |
70.60 |
Breadth overall (with fenders), m |
19.10 |
Breadth, m |
18.50 |
Breadth DWL, m |
18.0 |
Depth, m |
8.50 |
L x B x H |
86.00 x 19.10 x 8.50 = 13 962 |
2. |
Draught at SLWL, m |
6.00 |
3. |
Displacement at SLWL draught (γ = 1.025 t/m³), t |
5127 |
4. |
Deadweight at SLWL (γ = 1.025 t/m³) about, t |
1360 |
5. |
Capacity of cargo holds (about), m³ |
800 |
6. |
Container capacity, FEU |
12 |
7. |
Cargo cranes |
2 x 32 t (radius 22,5 m), aft A-frame of 80 t cargo capacity with max. handling of 10 m |
8. |
Russian Maritime Register of Shipping class |
KM Icebreaker 6 AUT1-ICS OMBO FF2WS DYNPOS-2 EPP Salvage ship |
9. |
Maximum continuous power of ME (not less than), kW |
2 x 3500 |
10. |
Rudder-propeller complex |
2 full rotated RP with FPP |
11. |
Ship speed in full load condition at SLWL, knots |
15 |
12. |
Ship economic speed, knots |
11 |
13. |
Bow thruster power, kW |
3 x 1000 |
14. |
Crew, pers |
26 |
15. |
Special stuff, number of berth |
12 |
16. |
Total number of berth survivors |
95 |
|
|
|
