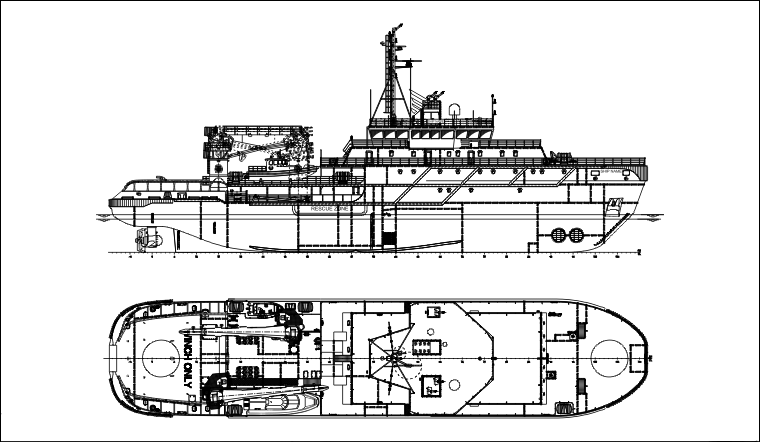

PROJECT MPSV07
Multipurpose salvage vessel 4 MW power ice navigation "Spasatel Karev" type
|
Purpose
•
stand by, rescue operation in areas of shipping, fishing, sea oil and gas fields; •
providing technical support and assistance in dangerous for shipping, sea foods production areas, servicing of transport operations in ports; •
search of and assistance to vessel is in distress; •
search, rescue, evacuation and placing of people, providing first aid to injured persons; •
refloat from ground and reef damaged vessels, pumping out water from flooded compartments; •
towing service of damaged vessels and objects to shelter area, and also providing sea towing of vessels, floating objects and constructions in ice conditions and at open water; •
providing assistance to vessels and rescue operations in ice conditions and at open water; •
providing assistance at fire fighting at floating and coastal objects accessible from sea; •
supply and logistic support, including performing underwater engineering operations with divers at depth up to 60 m; •
fire fighting of burning fuel on water, oil spills response service emergency oil and oil product spill; •
survey and cleaning underwater hull of vessels, floating and coastal objects; •
inspection of a sea-bottom and damaged objects on depths down to 1000 m.
|
|
Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
|
Neva shipbuilding and ship-repair yard |
|
|
|
SPASATEL KAREV |
Neva shipbuilding and ship-repair yard, 701 |
22.09.09 |
23.11.10 |
25.10.12 |
SPASATEL KAVDEYKIN |
Neva shipbuilding and ship-repair yard, 702 |
06.04.10 |
29.07.11 |
19.07.13 |
SPASATEL ZABORSCHIKOV |
Neva shipbuilding and ship-repair yard, 703 |
17.05.10 |
22.06.12 |
17.12.13 |
SPASATEL DEMYDOV |
Neva shipbuilding and ship-repair yard, 704 |
25.04.13 |
12.08.14 |
04.12.15 |
|
Zelenodolsk Shipyard |
|
|
|
|
|
29.10.21 |
|
|
# |
Name |
Value |
1. |
Main dimension |
Length overall, m |
73.00 |
Length, m |
64.40 |
Breadth overall, m |
16.60 |
Breadth, m |
15.50 |
Depth at midship, m |
6.70 |
Air draft at draught T = 3.60, m |
14.20 |
L x B x H |
73.00 x 16.60 x 6.70 = 8 119 |
2. |
Draught at DWL (design) / scantling, m |
4.50 / 5.10 |
3. |
Bollard pull, t |
70 |
4. |
Deadweight at draught T = 4.50 / 5.10 m, t |
640 / 1180 |
5. |
Hold capacity, m³ |
94 |
6. |
Oil recovery tanks capacity, m³ |
668 |
7. |
Endurance, days |
20 |
8. |
Russian Maritime Register of Shipping class |
KM Arc 5 AUT1-ICS OMBO FF3WS DYNPOS-2 EPP Salvage ship |
9. |
MDG power and type |
4 x 1370 kW WARTSILA 8L20 |
10. |
Harbor and emergency diesel-generators |
1 x 300 kW + 1 x 136 kW |
11. |
Rudder propeller input power and type |
2 x 2060 kW Steerprop SP45D/L3600 |
12. |
Bow thrusters |
2 x 995 kW HRP 7001TT |
13. |
Thermal boilers |
2 x 1000 kW + 4 x 260 kW (exhaust gas) |
14. |
Salvage dewatering pumps |
2 x 405 m³/h + 4 x 70 m³/h |
15. |
Special fire pumps, m³/h |
2 x 1500 |
16. |
Crew / special stuff / survivors, pers |
20 / 12 / 69 |
17. |
Speed, knots |
15 |
|
|
|
