PROJECT FD01

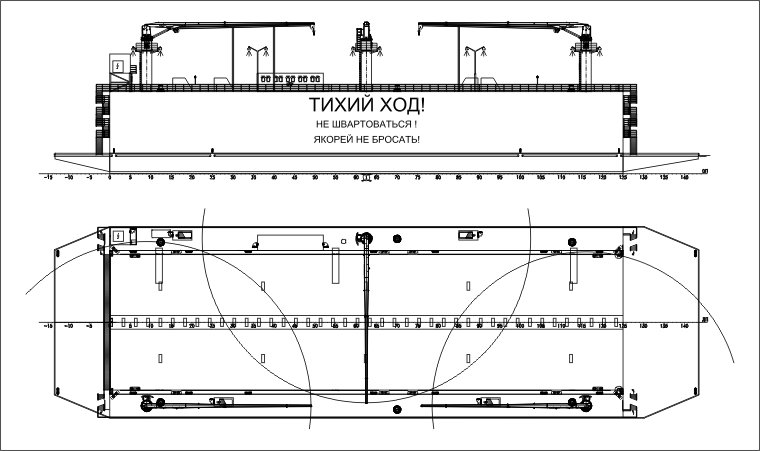

Floating moonlit dock, capacity 3830 t, non-self-propelled, steel, U-type, with two wingwalls and pontoon
| |
|
Purpose - renewal underwater hull and rudder-propeller complex of the vessels, and also like transport, launching and transfer construction for building or repair of the vessels on the horizontal manufacturing places.
|
| |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
94.0 |
| Length of pontoon deck, m |
75.0 |
| Breadth, m |
27.8 |
| Breadth of pontoon deck, m |
21.0 |
| Breadth of wingwall, m |
3.40 |
| Depth, m |
12.0 |
| Depth of pontoon at CL, m |
3.0 |
| L x B x H |
94.0 x 27.8 x 12.0 = 31 358 |
| 2. |
Limiting depth, m |
7.50 |
| 3. |
Deep above keel-block, m |
2.70 |
| 4. |
Capacity, t |
3830.0 |
| 5. |
Russian River Register class |
 R 1,2 |
| 6. |
Emergency diesel-generator, kW |
1 x 67.0 |
| 7. |
Ballast pumps, m³/h |
5 x 1250.0 |
| 8. |
Cargo crane, number / type |
3 / fixed electrical rotating cranes |
| 9. |
Capacity of cargo cranes |
4.60 t with 24 m |
|
| |
|
