PROJECT FD02

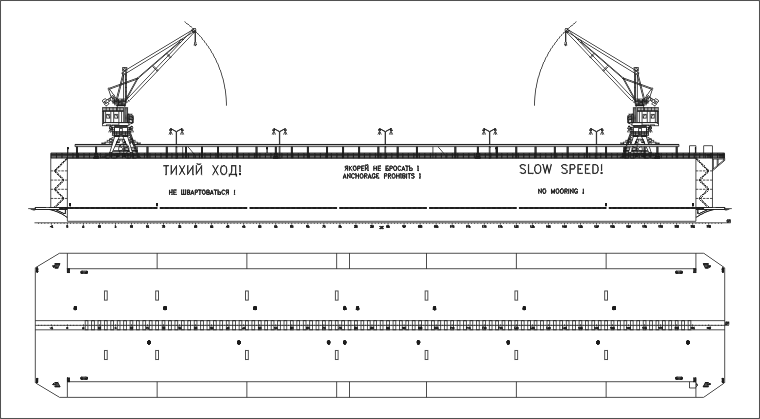

Floating moonlit dock, capacity 9300 t, non-self-propelled, steel, U-type, with two wingwalls and pontoon
| |
|
Purpose - renewal underwater hull and rudder-propeller complex of the vessels, and also like transport, launching and transfer construction for building or repair of the vessels on the horizontal manufacturing places.
|
| |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
150.50 |
| Length of pontoon deck, m |
137.20 |
| Breadth, m |
31.50 |
| Breadth of pontoon deck, m |
24.70 |
| Breadth of wingwall, m |
3.40 |
| Depth, m |
14.15 |
| Depth of pontoon at CL, m |
3.60 |
| L x B x H |
150.50 x 31.50 x 14.15 = 67 082 |
| 2. |
Limiting depth, m |
12.32 |
| 3. |
Deep above keel-block, m |
7.22 |
| 4. |
Capacity, t |
9300 |
| 5. |
Russian Maritime Register of Shipping class |
K  Berth-connected ship Floating dock |
| 6. |
Emergency diesel-generator, kW |
1 x 67 |
| 7. |
Ballast pumps, m³/h |
7 x 2200.0 |
| 8. |
Cargo crane, number / type |
2 / electrical dock rotating cranes |
| 9. |
Capacity of cargo cranes |
5.0 t with 7.0-15.0 m,
3.20-5.0 t with more then 15.0 m |
|
| |
|
