PROJECT FD03

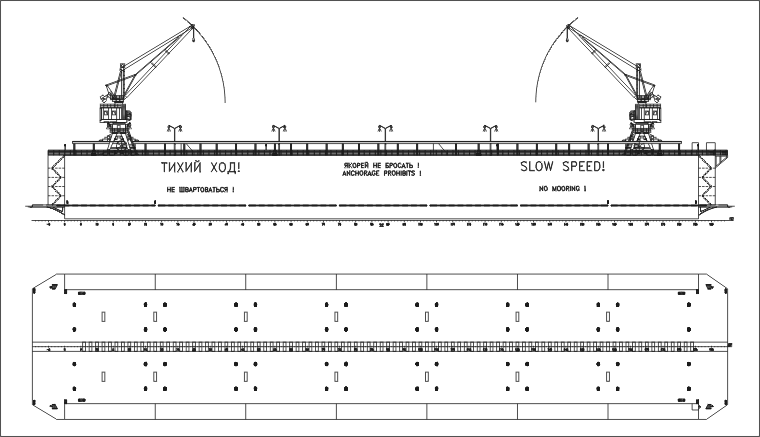

Floating moonlit composite dock, capacity 5600 t, non-self-propelled, steel, U-type, with two wingwalls and pontoon




Purpose - renewal underwater hull and rudder-propeller complex of the vessels, and also like transport, launching and transfer construction for building or repair of the vessels on the horizontal manufacturing places.




# Name Value
1. Main dimension
Length overall, m 150.50
Length of pontoon deck, m 137.20
Breadth, m 31.50
Breadth of pontoon deck, m 24.70
Breadth of wingwall, m 3.40
Depth, m 14.15
Depth of pontoon at CL, m 3.60
L x B x H 150.50 x 31.50 x 14.15 = 67 082
2. Limiting depth, m 12.32
3. Deep above keel-block, m 7.22
4. Capacity, t 5600
5. Russian Maritime Register of Shipping class K Berth-connected ship Floating dock
6. Emergency diesel-generator, kW 1 x 67
7. Ballast pumps, m³/h 6 x 2100.0
8. Cargo crane, number / type 2 / electrical dock rotating cranes
9. Capacity of cargo cranes 5.0 t with 7.0-15.0 m,
3.20-5.0 t with more then 15.0 m
