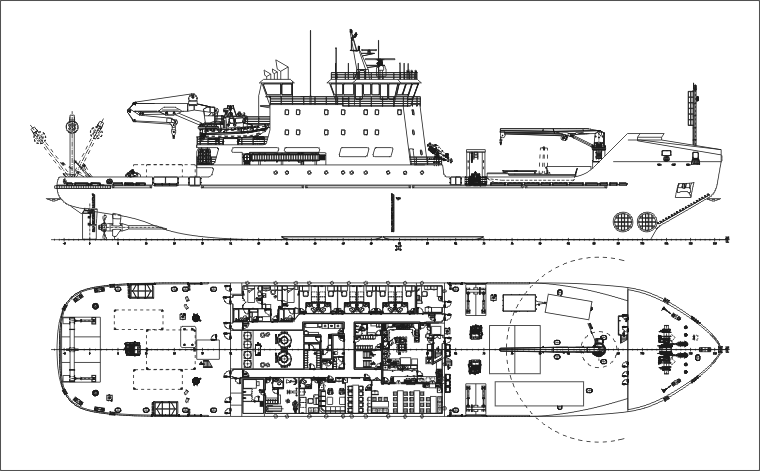

PROJECT HSV05.01


Arctic Hydrographic buoy laying survey vessel with "Arc7" ice class






Purpose:
• complex hydrographic researches and works;
• service of aids of navigating;
• delivery of specialists, supply and inventory to coastal object of aids of navigating and of radio technical aids of navigating;
other actions and works in structure of hydrographic supply of trading navigation in water area of Northern sea way.




# Name Value
1. Main dimensions
Length overall, m 83.0
Length DWL, m 80.33
Length between PP, m 76.72
Breadth overall (with fenders) m 17.20
Breadth DWL, m 16.60
Depth, m 6.70
L x B x H 83.0 x 17.20 x 6.70 = 9 565
2. Draught at SWL, m 5.10
3. Deadweight at SWL draught
(γ = 1.025 t/m³) about, т
1630
4. Range of sailing (about), miles 10800
5. Endurance by oil, fresh water and provision stores / by fuel in economical operation, days 90 / 45
6. Cargo hold capacity, m³ 645
7. Area of fore / aft cargo decks, m² 130 / 110
8. Loads on cargo decks /
cargo hold decks, t/m²
2.5 / 5
9. Container capacity, TEU 4
10. Russian Maritime Register of Shipping KM Arc7 AUT1-ICS OMBO Special purpose ship
11. ME power, kW 2 x 4000
12. Rudder and propellers complex 2 CPP +
2 streamlined semi-pendant semi-balanced rudders with flaps
13. Bow thrusters, kW 2 x 995
14. Shaft-generators, kW 2 x 1200
15. Auxiliary diesel-generators +
Emergency diesel-generator
2 x 760 kW +
1 x 125 kW
16. Crew / special stuff, pers. 22 / 30
17. Speed in full load condition at SWL / economic speed, knots 12-14 / 8-10
18. Cargo gears Electro-hydraulic cargo crane 12 t cargo capacity with boom of 11,5 m;
Electro-hydraulic cargo crane about 20 t cargo capacity with boom of 15 m;
Two electro-hydraulic cargo cranes about 0.98 t cargo capacity with boom of 10 m.
19. Special gears The working winch of 5 t cargo capacity with Cargo A-frame with handling of about 8 m;
Two bathymetric winches of 1 t cargo capacity (each) with working depth up to 3000 m with Cargo A-frames;
Two special capstans with towing tension not less than 5 t (each) are provided for installation/heaving works of buoys (type БМБЛ-78);
Special devices are installed on StB and PS for drops of anchors of weight up to 3 t;
The cargo barge is provided in ship equipment configuration for cargo transportation on the unequipped shore.
20. Hydrographic equipment Two hydrographic crafts equipped with:
• mobile hydrographic complex for operation at depths up to 400 meters based on multibeam echosounder;
• stationary singlebeam hydrographic measuring echosounder for operation at depths up to 600 meters;
• calibrating device for singlebeam echosounder for operation at depths up to 30 meters.
