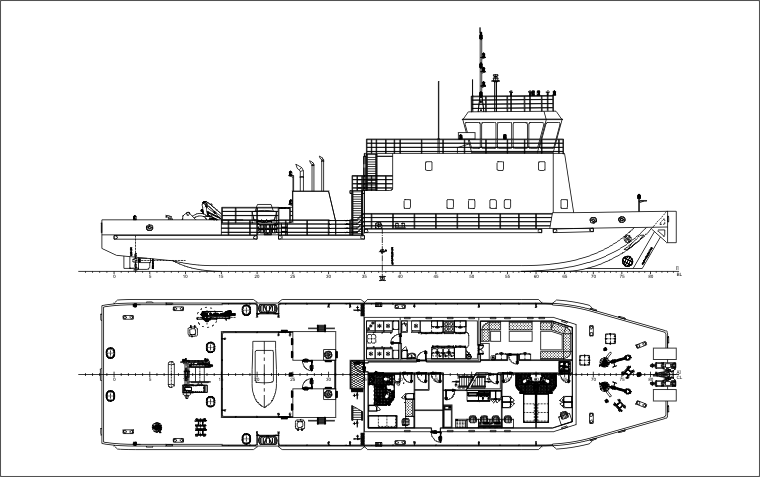

PROJECT HSV06E
Vessel for safety of shipping at inland waterways (hydrographic vessel)
| |
|
Purpose:
• hydrographic and survey works;
• research works with special staff onboard.
|
| |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall (about), m |
40.15 |
| Length at DWL, m |
38.04 |
| Breadth overall (about), m |
10.50 |
| Breadth at DWL, m |
10.0 |
| Depth at midship, m |
2.50 |
| L x B x H |
40.15 x 10.50 x 2.50 = 1 054 |
| 2. |
Draught at DWL, m |
1.40 |
| 3. |
Endurance, days |
10 |
| 4. |
Russian River Register class |
 O 2,0 (ice 20) A |
| 5. |
ME power, kWт |
2 x 405 |
| 6. |
Rudder and propellers complex |
2 FPP +
2 balanced twin-support rudders |
| 7. |
Bow thruster, kW |
1 x 100 |
| 8. |
Auxiliary diesel-generators, kW |
2 x 130 |
| 9. |
Crew / Special staff / Berth, pers. |
6 / 3 / 13 |
| 10. |
Ship speed (about) with draught at DWL, km/h |
21 |
| 11. |
Cargo gear |
Telescoping crane with lifting capacity 720 kg with 7.5 m |
| 12. |
Hydrographic equipment |
Dual frequency DGPS receiver with RTK;
Workstation (with specialized software with ECDIS and chartplotter facilities);
Multibeam echosounder;
Towed side-looking sonar (with electrical winch);
Hydrographic craft "Progress" type. |
|
| |
|
