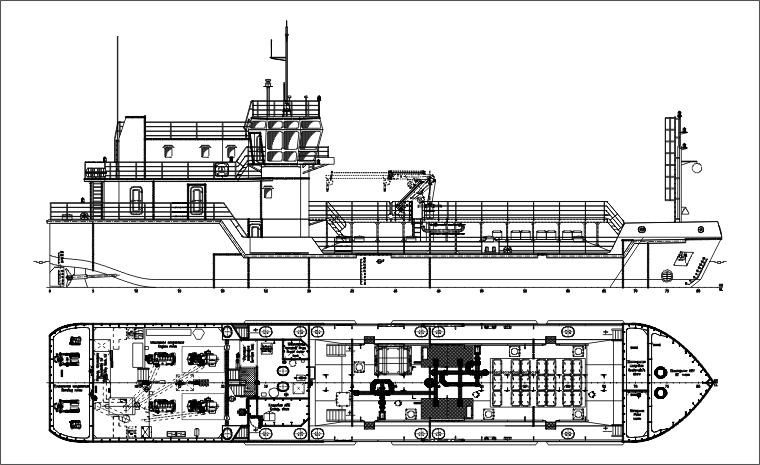

PROJECT RT29
Ecological vessel "Ecolog-1" type 207 DWT
|
Purpose - the ecological vessel is intended for reception and delivery sewage and oil bilge water polluted with oil products with temperature of flash is not lower 60°C, dry garbage.
|
|
Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
Jekolog-1 |
Sosnovsky SP, 10601 |
20.12.12 |
14.05.15 |
18.06.15 |
Onezhec BBK |
Sosnovsky SP, 10602 |
20.12.12 |
14.05.15 |
18.06.15 |
# |
Name |
Value |
1. |
Main dimension |
Length overall, m |
43.00 |
Length, m |
41.98 |
Breadth overall, m |
7.92 |
Breadth, m |
7.50 |
Depth, m |
2.10 |
L x B x H |
43.00 x 7.92 x 2.10 = 715 |
Overall height at nonremovable parts from BL, m |
12.00 |
2. |
Draught, m |
1.65 |
3. |
Deadweight, t |
207 |
4. |
Endurance, days |
7 |
5. |
Capacity of sewage tank, m³ |
129 |
6. |
Capacity of oily water tank, m³ |
54 |
7. |
Number of tanks (sewage / oily water) |
3 (2 / 1) |
8. |
Ballast tank capacity, m³ |
198 |
9. |
Russian River Register class |
O 2.0 (Ice 20) A |
10. |
ME power, kW |
2 x 208 |
11. |
Auxiliary diesel-generators, kW |
2 x 80 |
12. |
Bow thruster power, kW |
45 |
13. |
Crew, pers. |
6 |
14. |
Cargo pumps output, m³/h |
2 x 50 |
15. |
Speed (about), knots |
9.88 |
|
|
|
