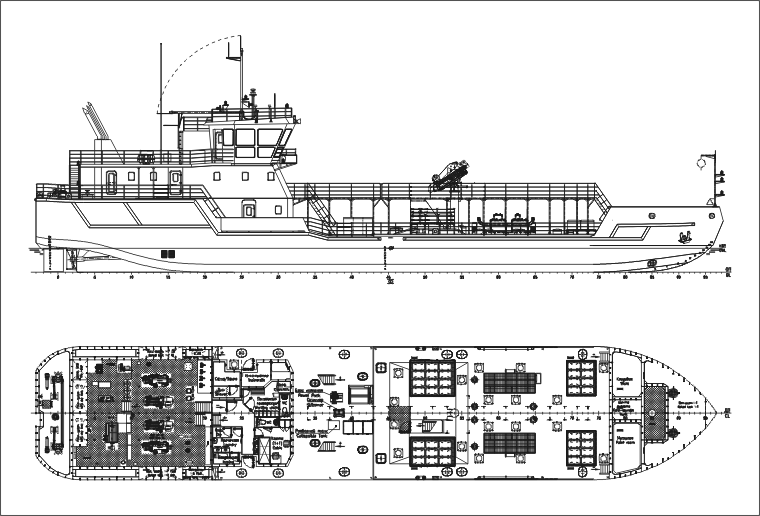

PROJECT RT37
Self-propelled tanker-fueler-ecological vessel, pollution control vessel 273 DWT
| |
|
Purpose - reception from a shore, transportation, distribution on a shore or another vessel of mineral oil (with a flash point from above 60°C), diesel fuel and luboil viscosity up to 50 Cst at t = 50°C. Also provide reception, cleaning or transportation to the place processing of oily water and sewage water, and dry garbage.
|
| |
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Georgy Moskalev |
Eastern-Siberian Inland Navigation Company |
05.04.18 |
17.06.19 |
28.05.20 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
51.60 |
| Length at DWL, m |
47.80 |
| Breadth overall, m |
10.23 |
| Breadth at DWL, m |
10.0 |
| Depth at midship, m |
2.60 |
| L x B x H, m |
51.60 x 10.23 x 2.60 = 1 372 |
| Overall height at nonremovable parts from BL, m |
12.85 |
| 2. |
Draught at DWL, m |
1.80 |
| 3. |
Deadweight, t |
273 |
| 4. |
Endurance, days |
15 |
| 5. |
Capacity of cargo tanks for diesel fuel, m³ |
81.5 |
| 6. |
Capacity of cargo tanks for oil, m³ |
16.5 |
| 7. |
Capacity of sewage tank, m³ |
58.7 |
| 8. |
Capacity of oily water tank, m³ |
24.8 |
| 9. |
Capacity of sludge tanks, m³ |
2.1 |
| 10. |
Ballast tank capacity, m³ |
433 |
| 11. |
Russian River Register class |
 M 3.0 (ice 30) A |
| 12. |
MCR of the ME, kW |
2 x 261 |
| 13. |
Auxiliary diesel-generators, kW |
2 x 100 |
| 14. |
Emergency diesel generator, kW |
85 |
| 15. |
Bow thruster power, kW |
55 |
| 16. |
Crew / places, pers. |
7 / 9 |
| 17. |
Cargo pumps output, m³/h |
2 x 19
2 x 3.5
4 x 7.5
3 x 3.4
1 x 30
2 x 2 |
| 18. |
Speed (about), knots |
8.64 |
|
| |
|
