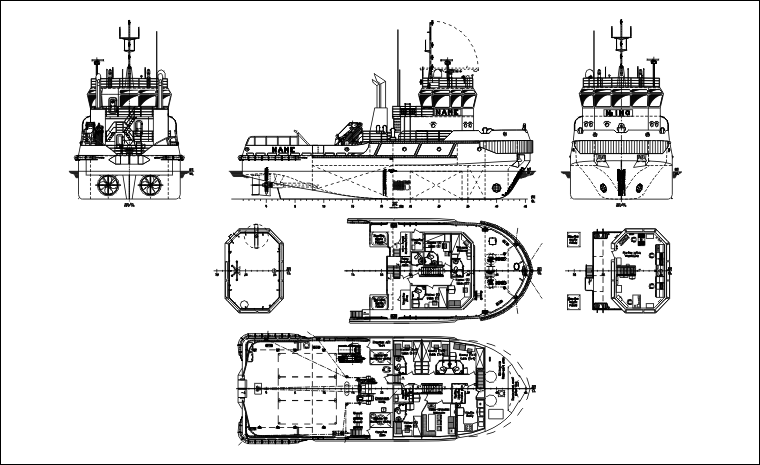

PROJECT TG05
1600 kW power shallow-draught tug-supplier for Caspian Sea "Feniks" type
| |
|
Purpose - towing at open sea conditions, in a port or on a road, is fitted to extinguishing of fires on other ships, buoyant and coast structures, the cargoes can be carried on main deck of aft.
|
| |
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| Feniks |
Nanjing East Star |
20.10.10 |
30.03.11 |
07.03.12 |
| Orion |
Nanjing East Star |
25.10.10 |
15.04.11 |
07.03.12 |
| Hercules |
Nanjing East Star |
30.10.10 |
26.04.11 |
07.03.12 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
30.72 |
| Length between perpendiculars, m |
26.80 |
| Breadth, m |
10.60 |
| Depth, m |
4.50 |
| L x B x H |
30.72 x 10.60 x 4.50 = 1 465 |
| Air draft (T=2.90), m |
10.60 |
| 2. |
Draught, m |
2.90 |
| 3. |
Bollard pull, t |
24 |
| 4. |
Displacement, t |
428.34 |
| 5. |
Endurance, days |
10 |
| 6. |
Russian maritime Register of Shipping class |
KM  Ice2 RI AUT3-C FF3WS Tug |
| 7. |
ME power, kW |
2 x 800 |
| 8. |
Auxiliary diesel-generators, kW |
130 |
| 9. |
Shaft generator, kW |
2 x 250 |
| 10. |
Rudder and propellers complex |
2 x CPP diametr 1,9 m in rotary nozzle (with stabilizer) |
| 11. |
Bow thruster |
200 kW propeller diametr 0.8 m |
| 12. |
Gross tonnage |
414 |
| 13. |
Crew / berth, pers |
8 / 10 |
| 14. |
Speed, knots |
10 |
|
| |
|
