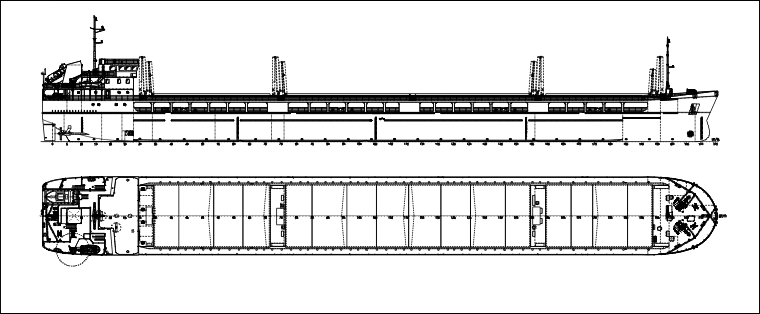

PROJECT RSD49
7143 / 4507 DWT dry-cargo vessel "Neva-Lider 1" type of "Volgo-Don max" class
Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including steel, grain, timber, coal, large-dimension and heavy-weight cargoes and dangerous cargoes of classes 1.4S, 2, 3, 4, 5, 6.1, 8, 9 by IC IMDG and Appendix B of the BC Code.
Nominations: Significant Ships of 2012 (RINA - Royal Institution of Naval Architects).
|
| Name |
Shipyard, building number |
Keel laying date |
Launching date |
Delivery date |
| |
Neva shipbuilding and ship-repair yard |
|
|
|
| Neva-Lider 1 |
401 |
14.12.10 |
20.05.12 |
26.11.12 |
| Neva-Lider 2 |
402 |
20.04.11 |
26.06.12 |
12.11.12 |
| Neva-Lider 3 |
403 |
15.08.11 |
10.10.12 |
16.05.13 |
| Neva-Lider 4 |
404 |
24.10.11 |
30.04.13 |
15.07.13 |
| Neva-Lider 5 |
405 |
20.12.11 |
02.07.13 |
11.09.13 |
| Neva-Lider 6 |
406 |
18.05.12 |
17.07.13 |
25.10.13 |
| Neva-Lider 7 |
407 |
23.08.12 |
18.10.13 |
23.12.13 |
| ZHIBEK ZHOLY |
408 |
31.10.12 |
12.07.16 |
29.09.16 |
| ATAMEKEN |
409 |
15.01.13 |
06.10.16 |
08.06.17 |
| Pola Sevastiana |
410 |
28.03.13 |
29.06.17 |
05.12.17 |
| |
Shipyard of Astrahan "Lotos" |
|
|
|
| Vladimir Zaharenko |
301 |
27.01.11 |
26.02.13 |
21.03.14 |
| Anatoliy Sidenko |
302 |
27.01.11 |
17.05.14 |
30.09.14 |
| Kaspiyskiy Bereg |
303 |
20.04.17 |
13.03.24 |
|
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
139.95 |
| Length between PP, m |
135.74 |
| Breadth, m |
16.50 |
| Depth, m |
6.00 |
| L x B x H |
139.95 x 16.50 x 6.00 = 13 855 |
| 2. |
Draught (in sea / in river), m |
4.70 / 3.60 |
| 3. |
Deadweight (in sea / in river), t |
7143 / 4507 |
| 4. |
Endurance, days |
20 |
| 5. |
Range, nautical miles |
4000 |
| 6. |
Number of cargo holds |
3 |
| 7. |
Cargo holds capacity, m³ |
10921 |
| 8. |
Ballast tanks capacity, m³ |
3959 |
| 9. |
Russian maritime Register of Shipping class |
KM  Ice2 R2 AUT1-C |
| 10. |
ME power, kW |
2 x 1200 |
| 11. |
Rudder and propeller complex |
2 FPP + 2 rudders |
| 12. |
Bow thruster, kW |
200 |
| 13. |
Auxiliary engines: |
| diesel-generators, kW |
2 x 292 |
| emergency diesel-generator, kW |
1 x 90 |
| 14. |
Crew / berth, pers. |
10 / 13 |
| 15. |
Speed (at draft d = 4.7 m and 85% MCR), knots |
11.5 |
|
